Description

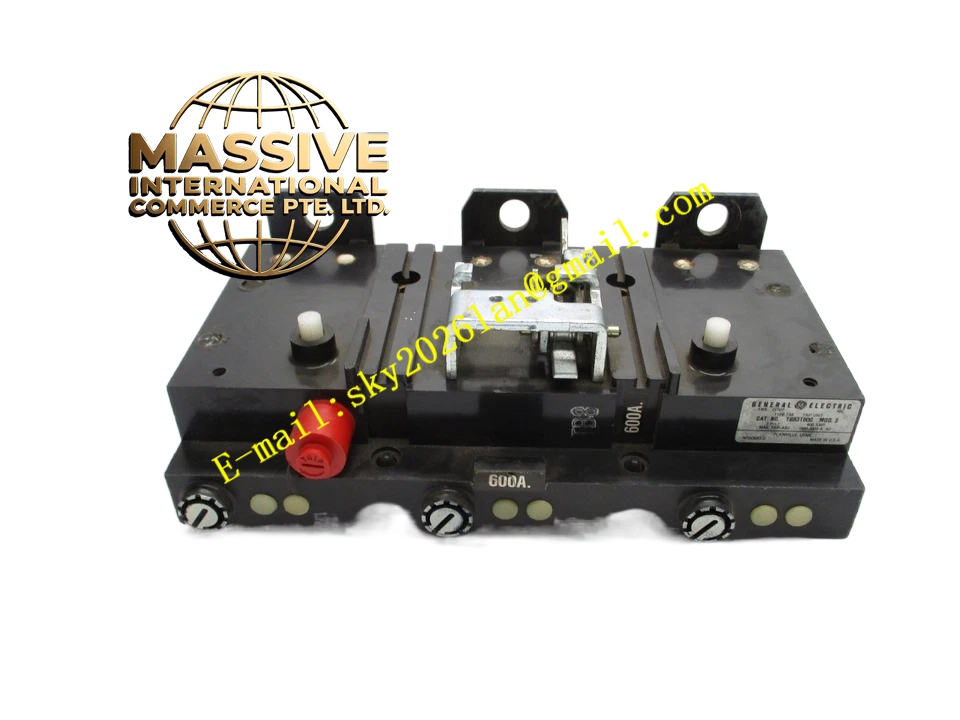

GE TB8SPK
Technical Specifications:
- Brand: General Electric (GE)
- Model: TB8SPK
- Product Type: Terminal Block Assembly
- System Compatibility: GE Turbine and Industrial Control Systems
Functional Features:
- Signal Conditioning: Amplifies and filters field signals to maintain data integrity.
- Electrical Isolation: Protects the control system from field voltage transients and ground potential differences.
- Secure Termination: Provides robust screw-terminal or spring-clamp connections for field wiring.
Application Scenarios:
Deployed in distributed control systems where field devices are located at a distance from the main controller rack.
Performance Parameters:
- Isolation Voltage: High dielectric strength for maximum protection.
- Signal Quality: Low distortion and high noise immunity.
Material Composition:
Industrial-grade terminal blocks and high-quality isolation transformers/optocouplers.
Structural Characteristics:
Terminal board form factor designed for DIN rail or panel mounting, featuring clearly labeled connection points.
Working Principle:
Receives raw signals from the field, applies galvanic isolation and signal conditioning, and passes the clean signal to the communication or I/O module.
Installation Requirements:
Use appropriate wire gauges and torque specifications for terminal connections. Ensure isolation barriers are not compromised during wiring.
Usage Precautions:
Verify wiring polarity before applying power. Do not exceed the maximum voltage ratings of the terminal block.
