Description

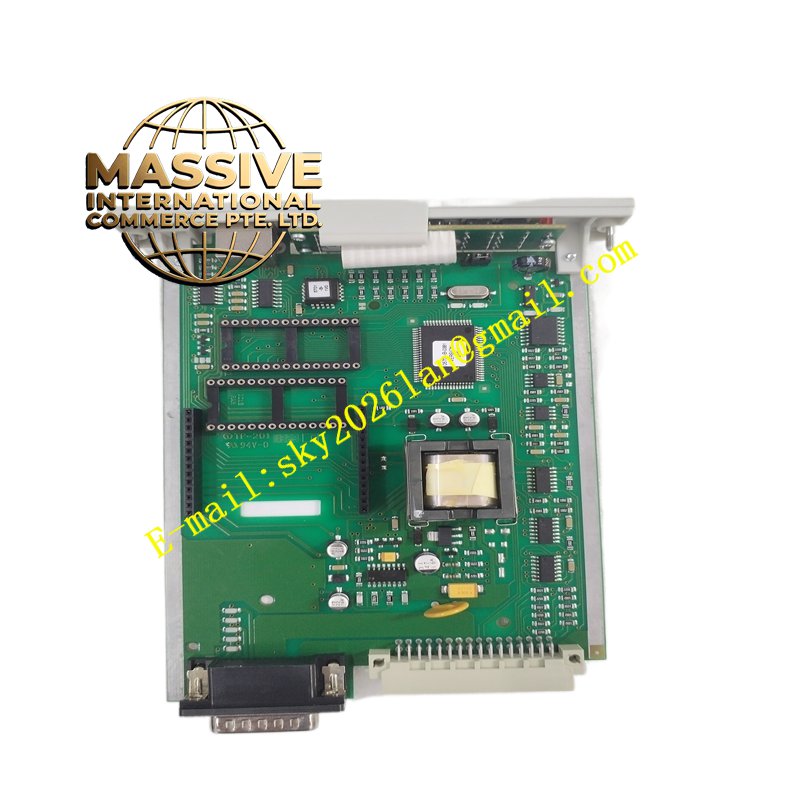

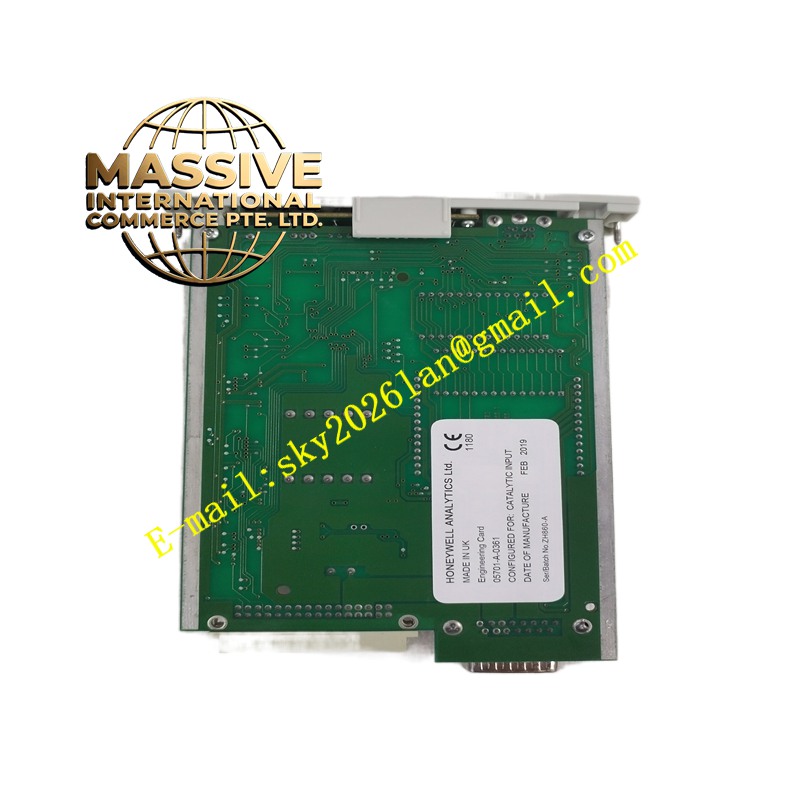

Honeywell 05701-A-0361
Technical Specifications:
- Brand: Honeywell (Zellweger / Analytics)
- Model: 05701-A-0361
- Power Supply: 18–32 VDC
- Power Consumption: Approximately 1.5 W
- Communication: RS-232 external engineering interface, optional Modbus RS422/485
Functional Features:
- Centralized Configuration: Provides a common interface for debugging, operating, and calibrating System 57 control cards (such as 4-20mA input cards).
- Local Calibration: Features front-panel tactile push buttons to check alarm levels, set spans, zero sensors, and inhibit channels directly at the rack.
- Real-Time Clock: Includes an on-board clock to store calibration history and trigger reminders for overdue maintenance to ensure regulatory compliance.
- Self-Validation: Continuously validates its circuit operations, software functionality, and backplane communications to guarantee system reliability.
Application Scenarios:
Essential for industrial safety and monitoring systems in oil and gas refineries, chemical plants, power generation facilities, and wastewater treatment plants where precise gas detection is critical.
Performance Parameters:
- Operating Voltage: 18-32 VDC
- System Integration: Seamless integration with SCADA/DCS systems via optional Modbus interface modules.
- Reliability: High MTBF rating ensuring continuous operation in hazardous environments.
Material Composition:
Constructed with durable, industrial-grade materials designed to withstand harsh environmental conditions, including extreme temperatures and corrosive atmospheres.
Structural Features:
Designed to be installed in the right-hand slot of the System 57 rack. Features tactile push buttons, LED indicators for power and communication status, and a mini DIN socket for connecting external computers or printers.
Working Principle:
The card routes 24V DC input to the backplane and manages serial communications. It allows users to monitor catalytic sensor head currents, adjust alarm set points, and calibrate sensor signals by interfacing directly with the channel cards via the backplane.
Installation Requirements:
Must be securely inserted into the designated right-hand slot of the System 57 rack. Requires a stable 18-32 VDC power supply and proper grounding.
Usage Precautions:
Always use the engineering key to unlock functions that alter control card operations. Regularly verify the system clock and calibration history to maintain safety compliance.
