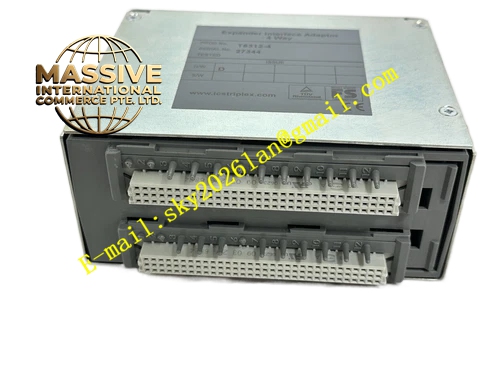

ICS Triplex T8891
Technical Specifications:
- Brand: ICS Triplex (Rockwell Automation)
- Model: T8891
- Product Type: Digital Output Module / Redundant Controller Module
- Output Voltage: 121V DC
- Redundancy: Triple Modular Redundancy (TMR)
- Performance Level: SIL 4
- Fault Switching Time: ≤1ms
- Power Supply: 24V DC
- Power Consumption: 50W
- Communication Interfaces: RS-232, RS-485, Ethernet
- Supported Protocols: Modbus
- Operating Temperature: -40°C to +85°C
- Dimensions: 300mm × 200mm × 100mm
- Weight: 5kg
Functional Features:
- Triple redundant (TMR) design with three independent processor and execution units per channel
- Fault-tolerant (3-2-0) operation capability
- Hardware Implemented Fault Tolerance (HIFT) architecture with rapid fault identification and response
- High-performance processor supporting complex control logic and high-speed data processing
- Modular design supporting multi-channel expansion (digital/analog input/output)
- Multiple communication interfaces (RS-232, RS-485, Ethernet) for system integration
- Supports Modbus and other industrial communication protocols
- Time-stamped fault historian for event recording
- Hot replacement capability without program re-loading
- Front panel indicators showing module health and status
- Front panel RS232 serial diagnostics port for system monitoring, configuration, and programming
- Full suite of IEC 61131-3 programming languages supported
- TÜV Certified IEC 61508 SIL 3
Application Scenarios:
- Industrial automation: monitoring production line equipment status including machine operation, conveyor position, and valve switching
- Safety systems: processing signals from emergency stop buttons, fire alarm buttons, and other safety devices
- Oil & gas, petrochemical, and power generation process control
- Emergency Shutdown Systems (ESD)
- Fire and Gas Detection Systems (F&G)
- Turbine control applications
Performance Parameters:
- Redundancy: Triple Modular Redundancy (TMR)
- Safety Performance Level: SIL 4
- Fault Switching Time: ≤1ms
- Output Voltage: 121V DC
- Operating Temperature: -40°C to +85°C
Material Composition:
- Industrial-grade multi-layer PCB
- High-reliability semiconductor components
- Precision-machined connectors
- Metal chassis with rack mounting provisions
Structural Features: Standard Trusted I/O module form factor. The module plugs into the Trusted I/O chassis backplane. Front panel features channel status LEDs and module health indicators. The front panel RS232 serial diagnostics port provides direct access for system monitoring and configuration.
Working Principle: The T8891 operates on the TMR principle where three independent processor channels execute identical control programs simultaneously. A hardware voter compares outputs using majority agreement logic, ensuring that any single-point fault is automatically masked without interrupting process control. The HIFT architecture provides dedicated hardware and software test mechanisms for very fast fault recognition and response, with automatic fault handling that avoids nuisance alarming.
Installation Requirements:
- Install in Trusted I/O chassis with adequate ventilation
- Maintain proper spacing for airflow and service access
- Use recommended Field Termination Assemblies
- Route field wiring separately from high-current cables
- All field wiring to use ferruled conductors with correct labeling
Usage Notes:
- Verify field supply voltage matches module rating before energizing
- Execute Lockout/Tagout procedures before wiring changes
- Regularly verify channel functionality through diagnostic tests
- Store spare modules in anti-static packaging
- Use the front panel RS232 diagnostics port for system monitoring and configuration
