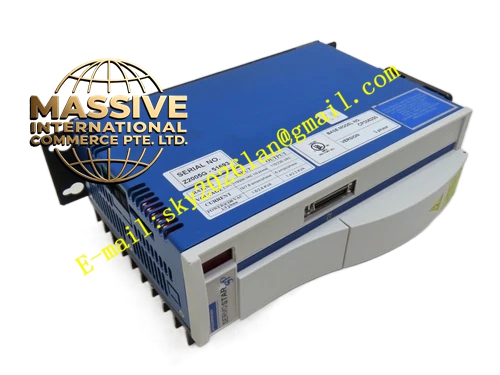

Kollmorgen CP306250
Technical Specifications
- Product Series: ServoStar P300
- Drive Type: Digital Servo Amplifier
- Rated Supply Voltage: 115/230V AC, single-phase and three-phase
- Control Logic Supply Voltage: 24V DC
- Rated Output Current (RMS): 6A
- Peak Output Current: 18A
- Speed Response Frequency: Up to 1kHz
- Protection Class: IP20
- Operating Temperature: -10°C to +55°C
- Certifications: CE, UL, cUL
Functional Features
- Digital Signal Processing: DSP-based control for precise motion control
- Multiple Control Modes: Supports current, velocity, and position control modes
- Versatile Feedback Support: Compatible with resolvers, sine/cosine encoders, and incremental encoders
- Analog and Digital I/O: Comprehensive I/O interface for integration with external systems
- RS485 Modbus RTU Communication: Standard serial communication for parameter configuration
- Built-in Protection: Over-current, over-voltage, over-temperature, and ground fault protection
- Compact Design: Space-saving form factor for control cabinet installation
Application Scenarios
- CNC Machine Tools: Feed axis drive control
- Industrial Robotics: Joint drive control
- Packaging Machinery: Indexing and positioning
- Printing and Converting: Web tension and registration control
- Material Handling: Conveyor and transfer systems
- General Factory Automation: Various motion control applications
Performance Parameters
- Rated Current: 6A RMS
- Peak Current: 18A
- Speed Response Frequency: Up to 1kHz
- Position Control Accuracy: ±1 pulse
- Velocity Control Accuracy: ±0.01%
- Current Control Accuracy: ±0.1%
Material Composition
Industrial-grade electronic components with IGBT power modules, digital signal processor, and robust metal housing designed for control cabinet mounting.
Structural Features
Compact rectangular form factor with standardized connectors for power, motor, feedback, communication, and I/O. LED status indicators on front panel for operational diagnostics. IP20 protection rating requires installation in a control cabinet.
Working Principle
The CP306250 receives 115/230V AC mains power, converts it to DC bus voltage through a rectifier stage, and uses IGBT-based PWM inverter technology to generate precisely controlled three-phase AC for the servo motor. The DSP executes current, velocity, and position control loops for closed-loop servo control.
