Description

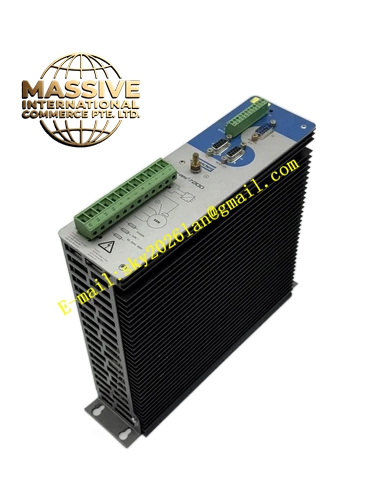

Kollmorgen DIGIFAS7201
- 0℃ to 60℃
- Relative Humidity: 5% to 95% (non-condensing)
Functional Features
- High-Precision Motor Control: Digital control algorithm optimized for 6SM synchronous brushless motors, enabling precise speed regulation and positioning over a wide speed range.
- Multi-Mode Control: Supports speed control, position control, and torque control modes.
- High-Resolution Feedback: High-resolution position and speed feedback for precise motion positioning.
- Programmability: Supports user-defined programs and function blocks for complex control logic.
- Multiple Interfaces: Includes analog and digital I/O, incremental encoder interface, SSI interface, and PC interface.
- Safety Protection: Built-in fuse protection, overload protection, and LED status display.
- Anti-EMI Design: Reduces the impact of electromagnetic interference from other workshop equipment.
Application Scenarios
- Metal Forming Equipment: Controls 6SM synchronous motors driving stamping and bending mechanisms.
- Food and Packaging Machinery: Drives conveying rollers, mixing devices, film traction, and cutting mechanisms.
- Textile and Papermaking Equipment: Drives spinning rollers, weaving mechanisms, and winding systems.
- General Industrial Automation: Assembly line conveying mechanisms and testing equipment motion platforms.
Performance Parameters
- Operating Efficiency: Up to 95% sustained over five years
- Continuous Output Current: Over 10A
- Short-Term Overload: Supported for dynamic start-stop and sudden load changes
Material Composition
Industrial-grade circuit components with high-durability materials. Compact housing with IP20 protection rating.
Structural Features
Compact design with dimensions of 275mm × 235mm × 71mm. Three-phase power connector for rated current input. LED display for status monitoring.
Working Principle
The amplifier receives three-phase AC input, converts it through an optimized energy conversion circuit, and delivers precisely controlled output to the 6SM synchronous brushless motor. The digital control algorithm monitors motor operating parameters in real time and dynamically adjusts output signals to offset errors caused by load disturbances and mechanical clearances.
Installation Requirements
- Supports vertical installation in switch cabinets with protection rating no less than IP54.
- Reserve sufficient heat dissipation space during installation.
- Avoid direct contact with heat-generating components.
- Connect through a fuse to protect against electrical surge impacts.
Usage Notes
- Operating temperature must remain within 0℃ to 40℃ to prevent overheating.
- Storage temperature must be controlled within -20℃ to 60℃.
- Operating environment must be free of corrosive gases and liquids.
- Ensure proper fuse protection is connected before operation.
