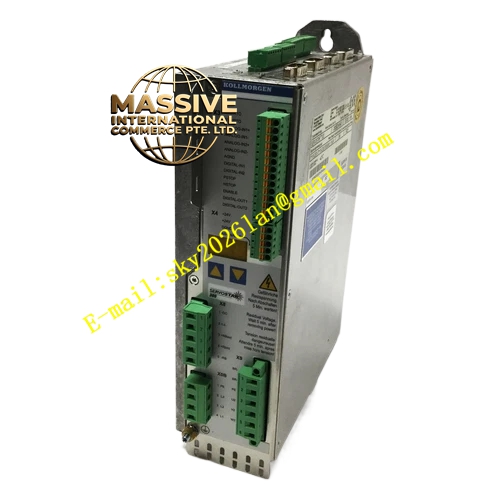

Kollmorgen S20330-VTS
Technical Specifications
- Input Voltage: 20 to 90 VDC
- Continuous Output Current: 3 Amps RMS
- Peak Output Current: 9 Amps RMS
- Control Logic Supply: Integrated or external 10-26 VDC
- Power Stage: Digital PWM output for three-phase brushless motors
- Feedback Interfaces: Resolver, incremental encoder, SFD
- Communication: Serial and fieldbus options per configuration
Functional Features
- Full digital servo control with torque, velocity, and position modes
- S-curve acceleration and deceleration profiles
- Absolute and relative indexing moves
- Electronic gearing and camming
- High-speed position capture and registration
- Adjustable error tracking and in-position windows
- Motion task linking and sequencing capability
- Pulse command input for stepper replacement applications
Application Scenarios
- Battery-powered mobile equipment
- Low-voltage industrial automation
- Semiconductor wafer handling
- Small precision assembly robots
- Laboratory and medical equipment
- Low-power packaging machinery
Performance Parameters
- 3:1 peak-to-continuous current ratio for high acceleration
- Fast settling time for precision positioning
- Low speed ripple for smooth motion
- High current loop bandwidth for stiffness
Structural Characteristics
- Compact footprint optimized for space-constrained installations
- Lightweight aluminum chassis with integrated cooling
- Plug-in connectors for quick installation and maintenance
- Status LEDs for operational state indication
Working Principle DC input power is filtered and regulated to drive the three-phase PWM output stage. Digital control processors close current, velocity, and position loops based on command inputs and motor feedback. The drive supports both standalone operation with stored programs and real-time command following via communication interfaces.
Installation Requirements
- Provide 20-90VDC power supply with adequate current capacity
- Use appropriate wire gauge for 9 Amp peak current
- Mount in ventilated enclosure avoiding direct exposure to contaminants
- Connect motor feedback cables with proper shielding
Operating Precautions
- Ensure DC input voltage remains within specified range
- Do not reverse polarity on DC input connections
- Verify motor current ratings match drive output capability
- Allow thermal recovery time after peak current events
