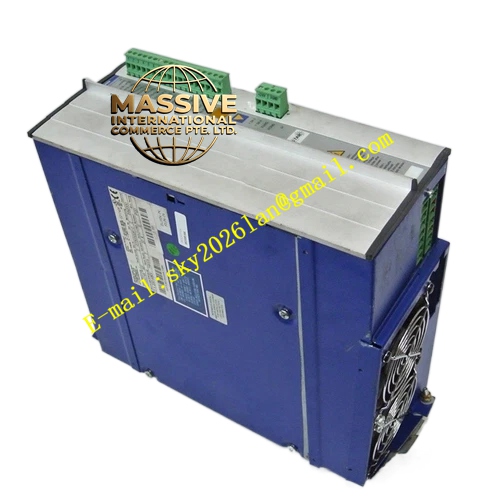

Kollmorgen S62000-500
Technical Specifications Series: ServoStar 600 (S600) Rated Output Current: 20 A RMS continuous Peak Output Current: 40 A RMS (2 seconds) Supply Voltage: 3-phase 230-480 VAC (-10%/+10%), 50/60 Hz Rated Insulation Load: 14 kVA (S1 operation) DC Bus Voltage: 290-675 VDC Switching Frequency: 8 kHz Current Loop Bandwidth: Greater than 1.2 kHz Velocity Loop Bandwidth: 400 Hz
Performance Parameters The S62000-500 delivers substantial torque output for heavy-duty servo axes. The drive can sustain 40 A peak current for 2 seconds during acceleration transients. Power dissipation at rated current is approximately 150 W, with 15 W standby dissipation when the output stage is disabled. The current form factor of 1.01 maintains low harmonic distortion. Efficiency reaches approximately 93% under standard operating conditions.
Functional Characteristics The drive supports position, velocity, torque, and electronic gearing control modes. Integrated motion control capability includes 255 programmable motion tasks with speed profiling, register control, and jolt limiting. Communication options include CANopen standard, with support for PROFIBUS, DeviceNet, and SERCOS through optional expansion cards. The drive features incremental or absolute encoder emulation output.
Structural Features Width: 120 mm Height: 275 mm Depth: 265 mm Weight: Approximately 7.5 kg Protection Rating: IP20 Cooling: Requires cabinet ventilation or external fan Braking Resistor: Built-in 33 Ω resistor Brake Control: 24 VDC, 2 A output for motor holding brake
Installation Requirements Mount on a conductive, grounded panel in a closed industrial control cabinet. The 120 mm width supports high-density multi-axis installations. Maintain minimum 45 mm clearance at top and bottom, 70 mm at sides. Connect 3-phase AC power through the X0A/X0B interface. Use 2.5 mm² shielded cables for DC bus connections when paralleling multiple drives (maximum 40 A total).
Operating Considerations Operating temperature range is 0°C to 45°C with derating required above 45°C. The drive is not suitable for explosive atmospheres, marine environments, or areas with corrosive chemicals. External filter measures are required when operating outside industrial electromagnetic environments. Ensure proper cabinet cooling to maintain thermal stability under full load conditions.
