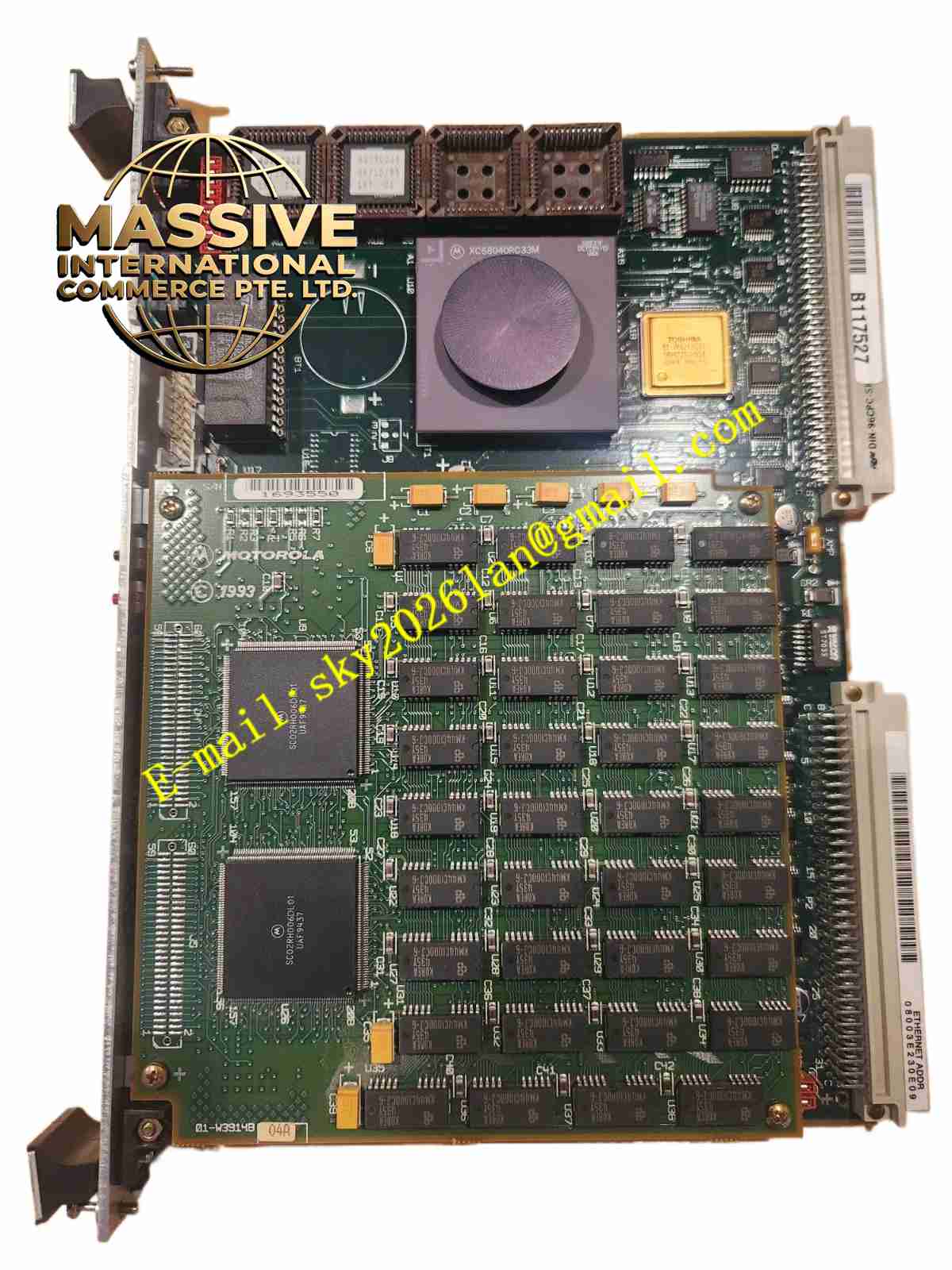

Motorola MVME148-001

Motorola MVME148-001

Product Introduction
The MVME148-001 is a member of the MVME148 series, serving as a transitional platform between the MVME147 and MVME162 families. It offers enhanced performance and expanded memory capabilities over the 147 series while maintaining VMEbus compatibility.

Request Quote
Category:

Description

Motorola MVME148-001

Technical Specifications

  • Microprocessor: MC68030 or early MC68040 microprocessor.
  • Main Memory: Expanded DRAM capacity.
  • Non-Volatile Storage: Battery-backed SRAM and Flash/EPROM.
  • Bus Interface: IEEE 1014-1987 VMEbus.

Functional Features

  • Enhanced Performance: Faster processor and memory subsystem.
  • Debug Support: Advanced monitor firmware.
  • IndustryPack Expansion: IP module support.
  • Serial Communications: Dual serial ports.

Application Scenarios
Industrial control, data acquisition, and legacy system upgrades.

Performance Parameters

  • VME Standard: A24/A32, D8/D16/D32.
  • Serial Ports: Dual EIA-232.

Material Composition
Industrial PCB with high-performance processor and memory.

Structural Characteristics
Standard 6U VME form factor.

Working Principle
Processor manages local bus; interface logic handles VME transactions.

Installation Requirements

  • Standard VME chassis installation.
  • Jumper configuration.
  • Forced-air cooling.

Usage Precautions

  • ESD protection.
  • No hot-swapping.
  • Battery maintenance.
