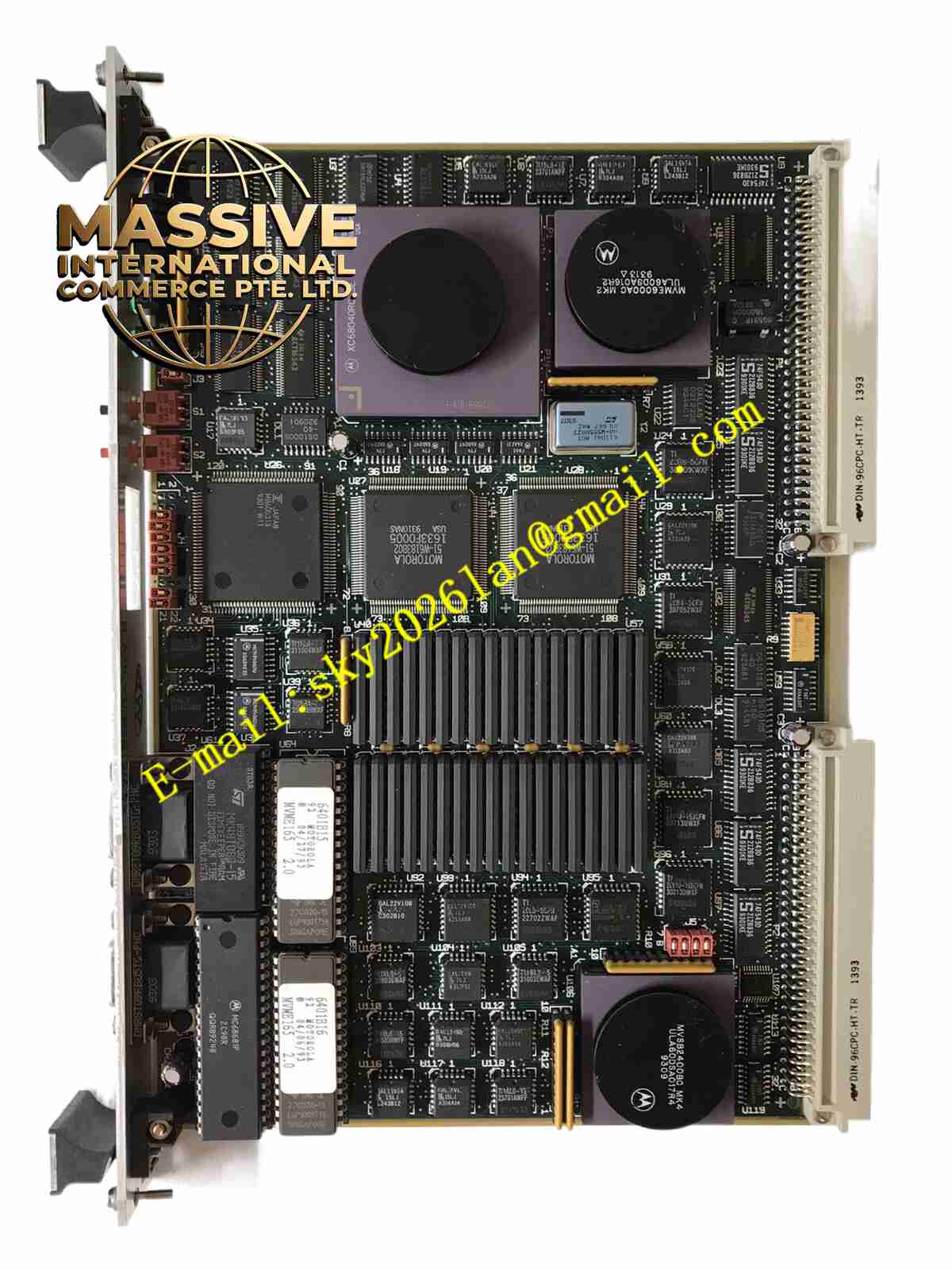

Motorola MVME165
Technical Specifications:
- Brand: Motorola
- Model: MVME165
- Processor Architecture: High-performance PowerPC architecture
- Cache & Computing: Equipped with 8KB cache, Memory Management Unit (MMU), and Floating-Point Unit (FPU)
- Communication Interfaces: Ethernet, serial ports, USB, PCI, and PCIe
- Expansion Ports: Supports four 16/32-bit IndustryPack ports
Functional Features:
- Modular Design: Features a “Lego-style” functional combination, allowing users to flexibly add communication and I/O modules to reduce custom development risks.
- Software Compatibility: Seamlessly supports real-time operating system kernels such as VxWorks and Linux, providing C/C++ programming interfaces and SDKs.
- Front-Maintenance Design: Engineers can replace modules without dismantling the chassis, significantly reducing downtime.
- Data Protection: Equipped with battery-backed SRAM and NVRAM to effectively prevent data loss during unexpected power outages.
Application Scenarios:
Widely utilized in industrial automation (nanometer-level precision control for semiconductor equipment, Automated Test Equipment), energy control (power grid monitoring, wind power data acquisition), and military/aerospace systems (radar control, missile guidance).
Performance Parameters:
- Response Speed: Millisecond-level real-time response to guarantee mission success rates.
- Anti-Interference Capability: Meets military-grade electromagnetic interference protection standards.
- Wide-Temperature Operation: Maintains stable operation in extreme environments ranging from -40°C to +85°C.
Material Composition:
Constructed with industrial-grade, high-reliability electronic components and strictly tested to ensure a stable lifecycle of over 15 years.
Structural Characteristics:
Standard 6U VME module size featuring a robust metal heat dissipation frame, redundant power management, hardware watchdog, and ECC memory verification mechanisms.
Working Principle:
Based on the PowerPC architecture to process complex real-time computing tasks, it interacts with external I/O modules via the VME bus and utilizes IndustryPack ports for precise field signal acquisition and control output.
Installation Requirements:
Must be inserted into a standard 6U VME chassis backplane, ensuring P1/P2 connectors are fully seated, with system addresses and interrupt jumpers configured correctly.
Precautions for Use:
Strict Electrostatic Discharge (ESD) protection protocols must be followed during operation. Due to the wide-temperature operating range, sufficient forced-air cooling within the chassis is mandatory.
