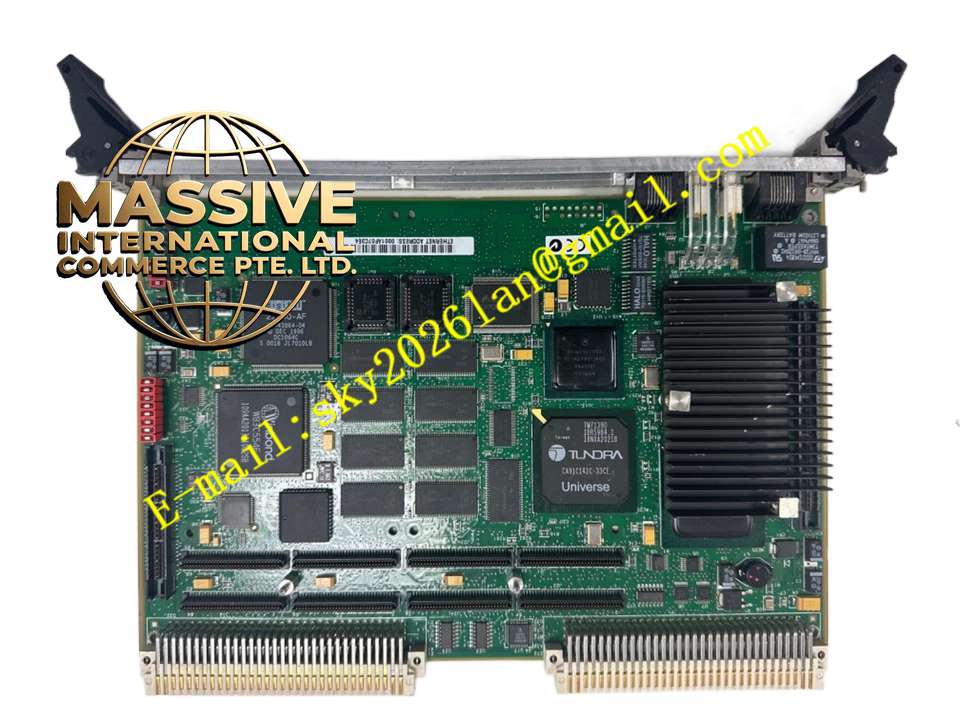

Motorola MVME2304
Technical Specifications
- Microprocessor: 200 MHz MPC603 PowerPC processor.
- Memory Options: 32MB or 64MB ECC DRAM.
- Cache: 16KB instruction / 16KB data on-chip L1 cache.
- Timers: One watchdog timer and four 16-bit real-time programmable timers.
Functional Features
- Delivers powerful PCI local bus throughput.
- Supports multiple real-time operating systems such as VxWorks and OS-9.
- Front panel provides comprehensive status indicators and manual control switches.
Application Scenarios
Ideal for complex industrial process control, telecommunications infrastructure, advanced data acquisition, and modernization of legacy systems.
Performance Parameters
- Excellent instruction execution efficiency and memory access bandwidth.
- Meets industrial-grade Electromagnetic Interference (EMI) standards.
Material Composition
High-Tg flame-retardant PCB substrate combined with precision Surface Mount Technology (SMT) components and high-quality connectors.
Structural Characteristics
Standard 6U VME dimensions with front panel cutouts perfectly aligned for PMC modules and RJ45 interfaces.
Working Principle
The processor collaborates with various ASIC chips via the local bus to manage memory read/write operations, PCI device communication, and VME bus arbitration, ensuring efficient and stable system operation.
Installation Requirements
- Verify the chassis backplane provides stable +5V, +12V, and -12V power.
- Correctly configure front panel boot switches and jumpers.
Usage Precautions
- Avoid using non-reinforced versions in high-vibration environments.
- Ensure external cable shielding is properly grounded.
