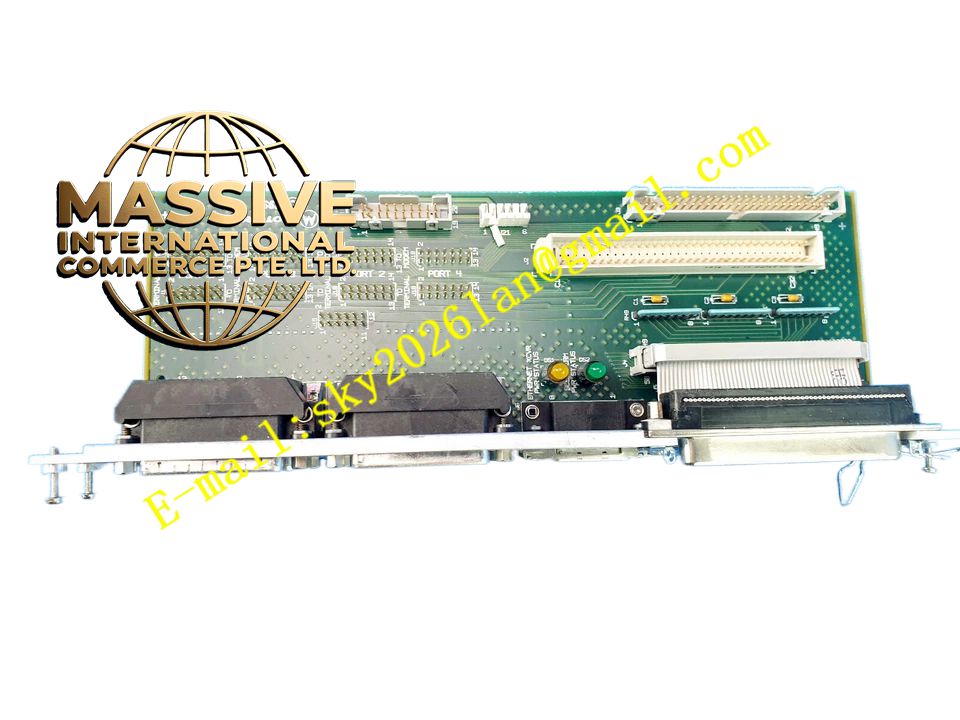

Motorola MVME2306
Technical Specifications
- Microprocessor: 300 MHz MPC604 PowerPC processor.
- Cache: 32KB/32KB instruction/data L1 cache.
- Memory: Supports 16MB to 128MB ECC DRAM.
- Power Draw: Typical +5V current is 4.5A, maximum 5.5A.
Functional Features
- Significantly higher computational performance than MVME2301-2304.
- Supports dual-interleaved ECC memory for enhanced data integrity.
- Provides abundant PCI and VME bus bandwidth.
Application Scenarios
Ideal for advanced process control, complex motion control, real-time data processing, and high-performance embedded computing platforms.
Performance Parameters
- SPECint95 performance significantly outperforms the MPC603 platform.
- Supports higher bus clock frequencies.
Material Composition
High-Tg industrial-grade PCB equipped with efficient thermal dissipation design.
Structural Characteristics
Standard 6U VME size with front panel layout consistent with the MVME2300 series.
Working Principle
The MPC604 processor utilizes its superscalar architecture to execute instructions in parallel, communicating with local devices via the Raven PCI bridge and exchanging high-speed data with the VME backplane through the Universe ASIC.
Installation Requirements
- Due to higher power consumption, ensure the chassis provides ample cooling airflow.
- Verify the backplane power module can supply sufficient +5V current.
Usage Precautions
- Exercise caution around the heatsink to avoid burns.
- Ensure the system power supply includes overcurrent protection.
