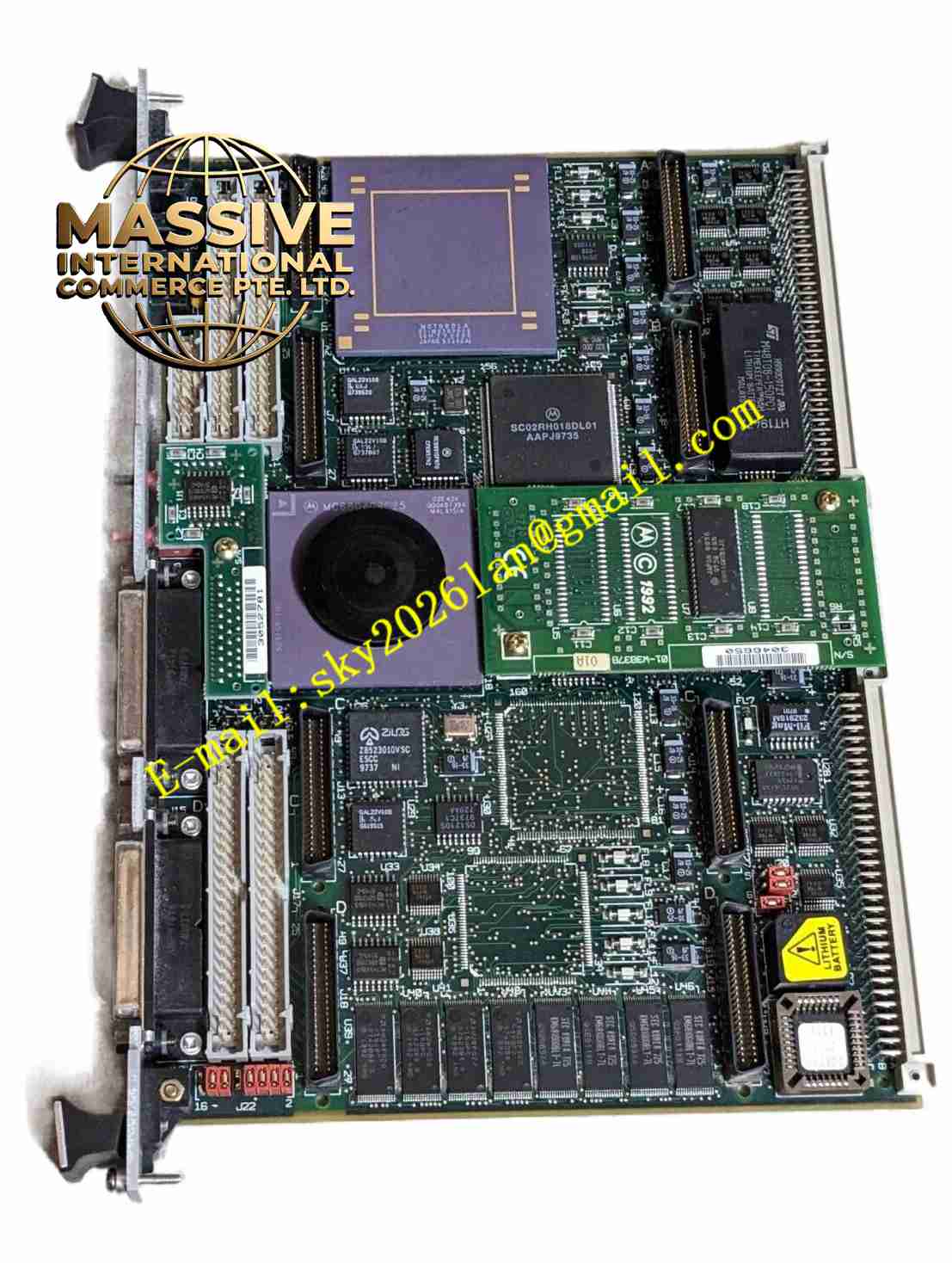

Motorola MVME260KE
Technical Specifications
- Processor: PowerPC MPC604 at 400 MHz.
- Memory: Up to 512MB ECC DRAM.
- Storage: 9MB Flash with battery-backed NVRAM.
- I/O: Four serial ports, Ethernet, SCSI, keyboard, and mouse interfaces.
Functional Features
- Comprehensive I/O: Combines HMI support with full industrial I/O suite.
- Extended Memory: Up to 512MB ECC DRAM for demanding applications.
- Enhanced Reliability: Improved component selection for mission-critical use.
Application Scenarios
- Operator Control Stations: Full-featured HMI with local processing.
- Industrial Servers: Embedded servers with local interaction capability.
- Complex Control Systems: Multi-axis motion control with operator interface.
Performance Parameters
- Operating Temperature: 0°C to 55°C with forced-air cooling.
- Storage Temperature: -40°C to +85°C.
- Humidity: 5% to 90% non-condensing.
Material Composition
Premium industrial-grade components with integrated Super I/O and high-density memory modules.
Structural Characteristics
- Form Factor: Double-high 6U VMEbus.
- Dimensions: Standard VME 6U mechanical footprint.
Working Principle
The 400 MHz MPC604 processor manages all system resources including HMI I/O, network communication, and VMEbus transfers through dedicated ASICs and DMA controllers.
Installation Requirements
- Requires 6U VME chassis with forced-air cooling.
- Ensure adequate power supply capacity for enhanced configuration.
Usage Precautions
- Strict ESD compliance required.
- Verify all I/O connections match transition module specifications.
- Monitor system temperature during extended operation.
