Description

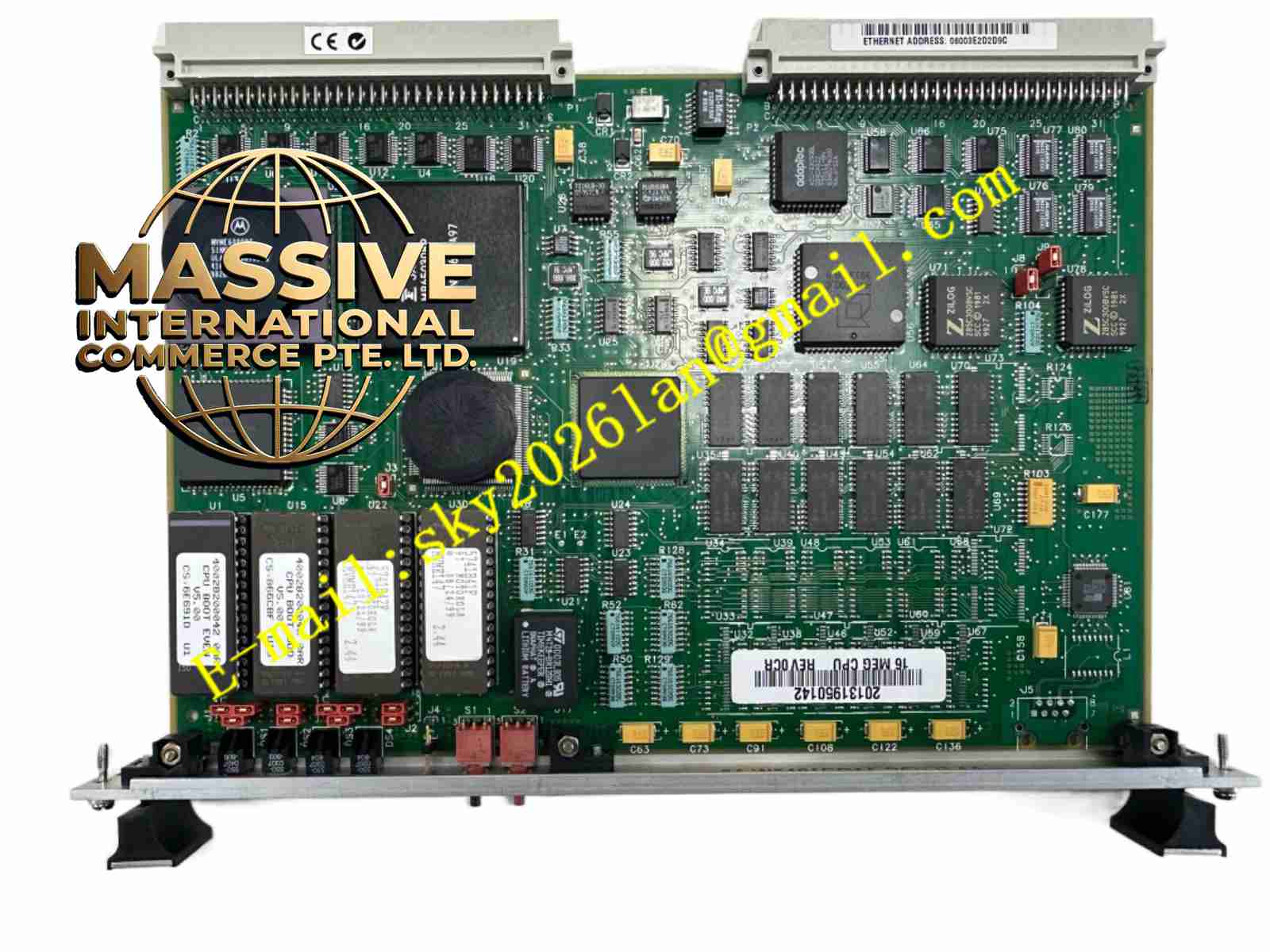

Motorola MVME2700-3241
Technical Specifications
- Microprocessor: PowerPC 750 at 366 MHz.
- Memory: Up to 256MB ECC DRAM.
- Storage: 8MB onboard Flash, 1MB slot-in Flash.
- Power: +5Vdc, +12Vdc, -12Vdc.
Functional Features
- High-Speed Processing: 366 MHz PowerPC for complex algorithms.
- Expanded Memory: 256MB ECC DRAM for data-intensive tasks.
- Comprehensive I/O: Ethernet, SCSI, serial ports with DMA.
- System Control: VMEbus system controller with block transfer support.
Application Scenarios
- Motion Control: CNC machines and robotic controllers.
- Data Acquisition: High-speed sensor data logging.
- Telecommunications: Network routing and switching.
Performance Parameters
- Operating Temperature: 0°C to 55°C with forced-air cooling.
- Storage Temperature: -40°C to +85°C.
- Humidity: 5% to 90% non-condensing.
- Bus Performance: High-bandwidth VMEbus transfers.
Material Composition
Industrial-grade silicon, multi-layer PCB, and lithium backup battery.
Structural Characteristics
- Form Factor: Double-high 6U VMEbus.
- Dimensions: Standard VME 6U mechanical footprint.
Working Principle
The 366 MHz PowerPC processor manages system resources through integrated cache and ASIC-based bus controllers, utilizing DMA for high-speed data transfers.
Installation Requirements
- Requires a robust VME chassis power supply capable of delivering peak current.
- Adequate cooling is mandatory.
Usage Precautions
- Observe strict ESD protocols.
- Do not slide the board across surfaces.
- Verify power supply capacity before installation.
