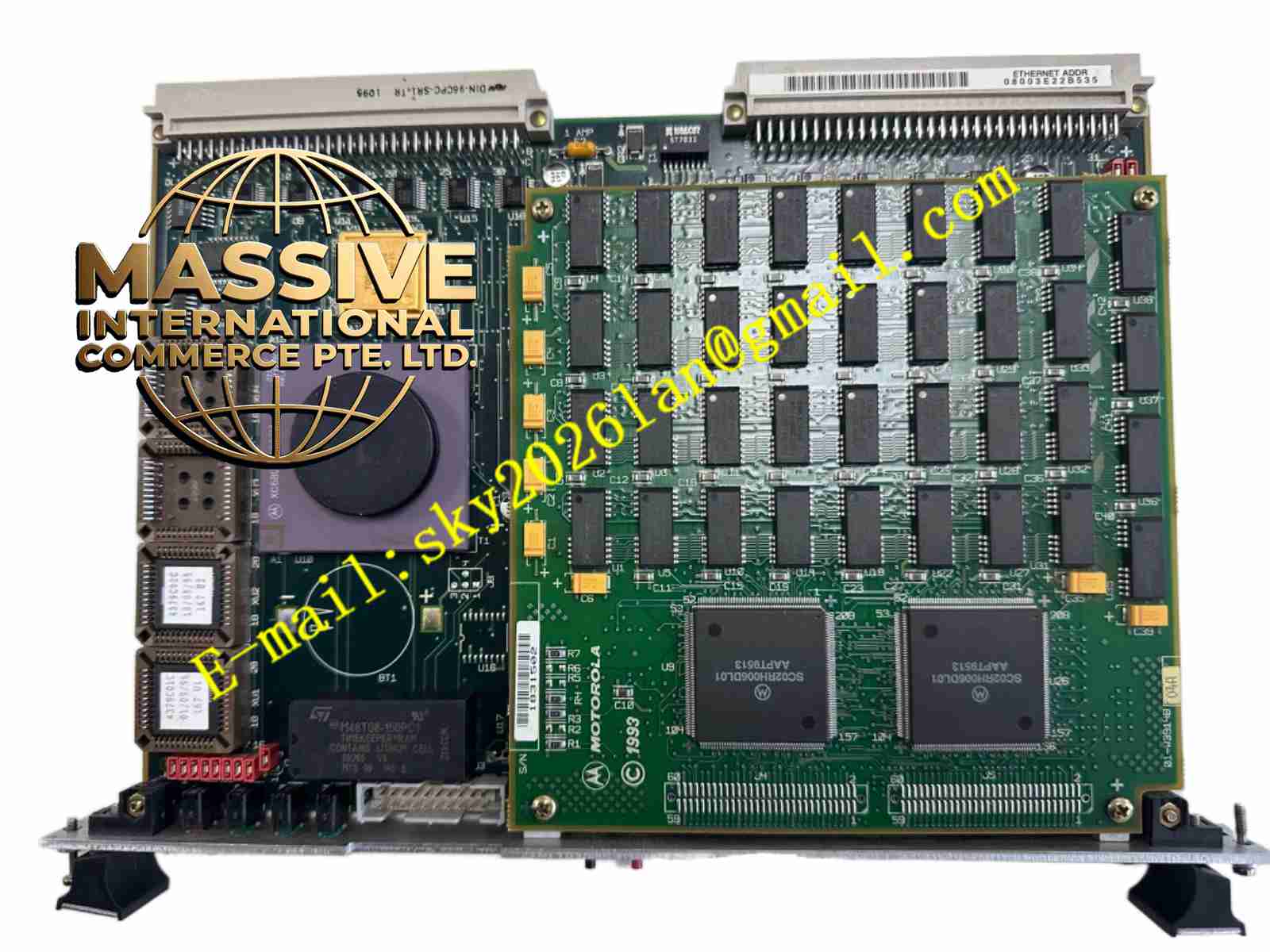

Motorola MVME2700-761
Technical Specifications
- Network: 10BaseT or 100BaseT port (RJ-45).
- Parallel: IEEE 1284 compliant parallel port (RJ-45).
- Serial: Two DB-9 (async) and two HD-26 (sync/async) connectors.
- Storage: Fast 16-bit SCSI interface.
Functional Features
- High-Speed Networking: 10/100BaseT auto-negotiating Ethernet.
- Flexible Serial Protocols: Ports 3 and 4 configurable as EIA-232, EIA-530, V.35, or X.21 via SIM modules.
- Enhanced SCSI: 16-bit SCSI support via 5-row P2 adapter.
- PMC I/O: 5-row P2 adapter also routes PMC input/output signals.
Application Scenarios
Ideal for complex industrial control, aerospace testing, and telecommunications requiring high-speed networking and multi-protocol serial communication.
Performance Parameters
- SCSI Support: 5-row P2 adapter for 16-bit SCSI and PMC I/O.
- Serial Flexibility: Multiple protocol support via Serial Interface Module (SIM).
Material Composition
High-quality industrial PCB with gold-plated RJ-45 and HD-26 connectors.
Structural Characteristics
Front-panel module with RJ-45, DB-9, and HD-26 connectors, attaching via P2 adapter.
Working Principle
Routes PCI bus, VME expansion, and power signals from the MVME2700 through the 5-row P2 adapter to the external interfaces.
Installation Requirements
Requires a 5-row P2 adapter for 16-bit SCSI and PMC I
