The Motorola MVME3604-6352 is a top-tier configuration model within the MVME3600 series. The suffix “6352” identifies the top-level configuration of this module in terms of processor clock speed, memory capacity, and I/O expansion capabilities, specifically designed for the most stringent industrial computing environments.

Request Quote
Category:

Description

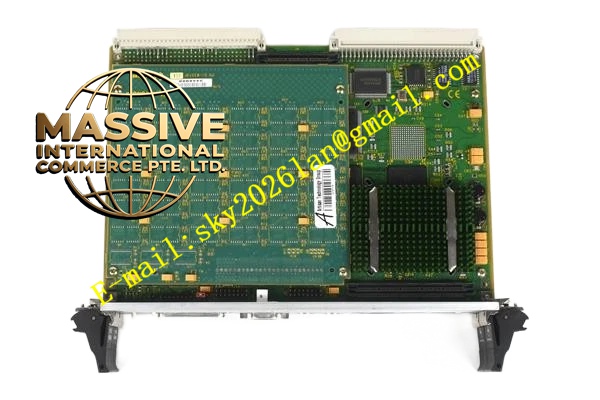

Motorola MVME3604-6352

Technical Specifications

  • Processor Architecture: Equipped with a high-performance MPC604 processor.
  • Memory Configuration: Features 64MB to 1GB of ECC-protected DRAM.
  • Flash Capacity: Onboard 9MB Flash memory.
  • Bus Standard: Compliant with VME64 expansion standards.

Functional Features

  • High Computational Power: Delivers exceptional processing speed to meet the demands of complex control algorithms.
  • Rich Peripheral Support: Integrates SCSI chips, Ethernet chips, graphics chips, and PMC slots.
  • Multi-Interface Support: Provides parallel ports, asynchronous/synchronous serial ports, real-time clocks, and counters/timers.

Application Scenarios
Suitable for core industrial control, real-time simulation, large-scale scientific instruments, and critical infrastructure monitoring.

Performance Parameters

  • Computing Speed: High-performance metrics defined by the 6352 specification.
  • Data Integrity: ECC memory effectively prevents data bit flipping.

Material Composition
Constructed using high-layer impedance-controlled PCBs, populated with industrial-grade processors, memory chips, and power management ICs.

Structural Characteristics
Connects to the VME backplane via P1 and P2 connectors, utilizing a new 5-row 160-pin connector. The front panel provides DB-15 graphics interfaces, DIN keyboard/mouse interfaces, and floppy drive interfaces.

Working Principle
Serving as the master control node of the VME system, it exchanges data with other modules via the high-speed VME bus. Its powerful processor handles multiple real-time tasks concurrently and manages onboard peripherals through PCI and ISA buses.

Installation Requirements

  • Ensure the backplane supports the VME64 expansion standard.
  • Front panel interface connections must ensure pin alignment; avoid forceful insertion or removal.
  • 3.3V power is regulated onboard from +5V; ensure stable +5V backplane power supply.

Usage Precautions

  • This module has high power consumption; ensure chassis cooling meets requirements.
  • When upgrading the system, carefully read the release notes and compatibility guides for the 6352 version.
