Description

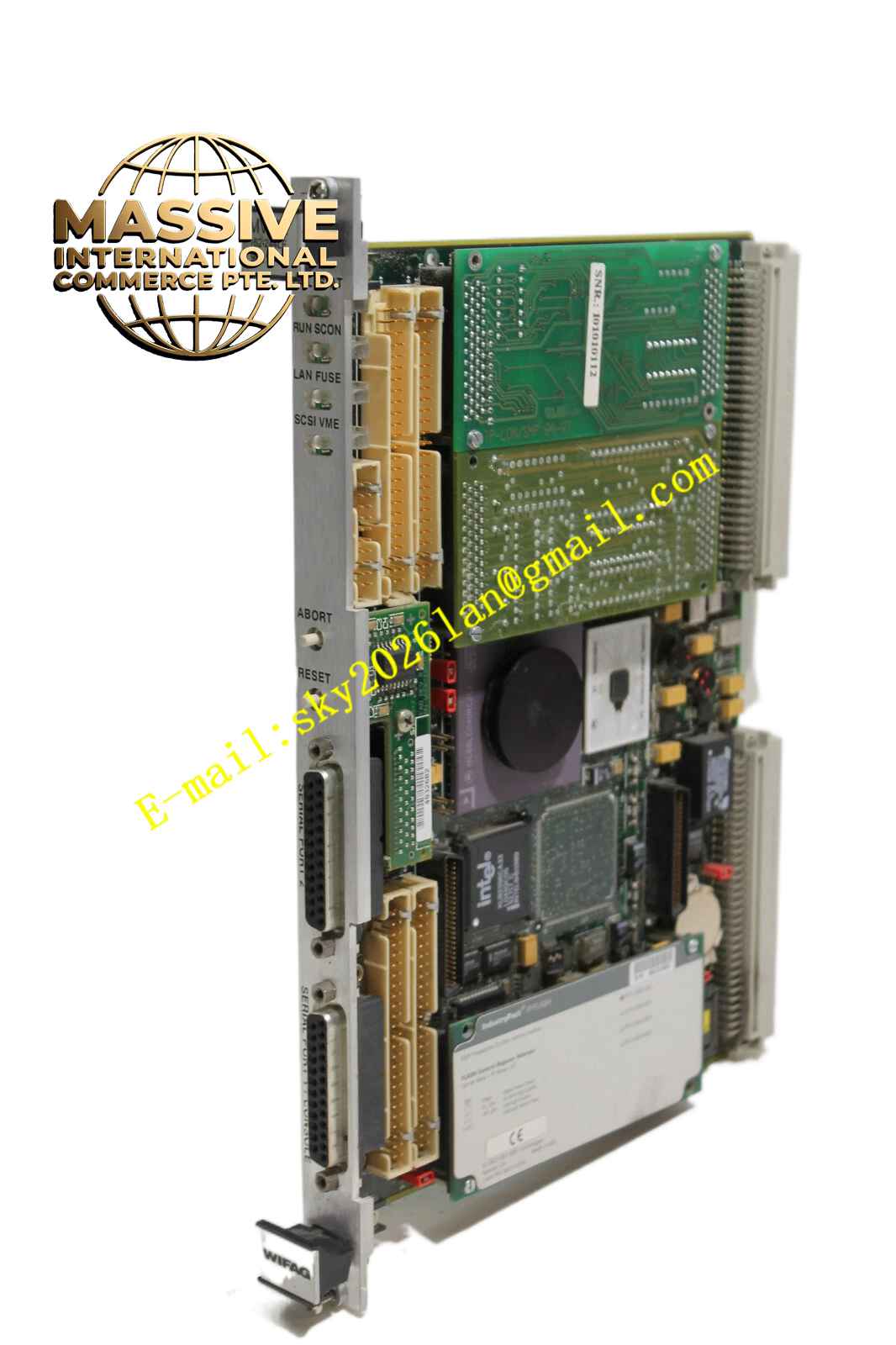

Motorola MVME5100-0163
Technical Specifications:
- Brand: Motorola
- Model: MVME5100-0163
- Product Type: VME SBC
- Bus Standard: VME64
Functional Features:
- Classic Architecture: Built on mature PowerPC and VME bus technologies.
- Broad OS Support: Supports VxWorks, OS-9, Linux, and other real-time systems.
- High Reliability: Industrial-grade design suitable for 24/7 continuous operation.
Application Scenarios:
Legacy industrial control system upgrades, defense, and aerospace test equipment.
Performance Parameters:
Stable processing performance with deterministic real-time response.
Material Composition:
Industrial-grade PCB and components with conformal coating.
Structural Characteristics:
Standard 6U VME dimensions with P1/P2 connectors.
Working Principle:
Serves as the master control board in a VME system, executing real-time control logic and system management.
Installation Requirements:
Correctly set VME address and interrupt jumpers, insert into the backplane, and secure.
Precautions for Use:
Avoid mixing with incompatible VME modules. Pay close attention to chassis heat dissipation.
