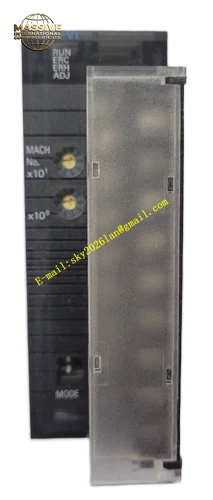

OMRON CJ1W-AD041-V1
Technical Specifications:
- Brand: OMRON
- Model: CJ1W-AD041-V1
- Product Type: Analog Input Unit
- Compatible System: CJ Series PLC
- Number of Inputs: 4 channels
- Input Signal Range:
- Voltage: 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V
- Current: 4 to 20 mA
- Resolution: 1/4000 (1 ms/point) or 1/8000 (0.25 ms/point)
- Accuracy: ±0.2% of full scale (Voltage), ±0.4% (Current) at 25°C
- Input Impedance: 1 MΩ min. (Voltage), 250 Ω (Current)
- Isolation: Photocoupler isolation between I/O and PLC
- Power Consumption: 420 mA max. at 5 VDC
- Dimensions: 31 mm (W) × 90 mm (H) × 65 mm (D)
Functional Features:
- 4-channel analog input with selectable ranges per channel
- High-resolution conversion (up to 1/8000)
- High-speed conversion (0.25 ms/point)
- Break detection function
- Peak hold and averaging functions
- Detachable terminal block for easy wiring
Application Scenarios:
- Process control (temperature, pressure, flow)
- Machine automation
- Data acquisition systems
- Quality control monitoring
- Energy management systems
Performance Parameters:
- Input Channels: 4
- Resolution: 12-bit (1/4000) or 13-bit (1/8000)
- Conversion Speed: 1 ms or 0.25 ms per point
- Accuracy: ±0.2% (Voltage)
Material Composition:
- Precision analog-to-digital converter ICs
- Multi-layer printed circuit board
- Plastic housing
- Detachable terminal block
Structural Features: The unit features a compact 31mm width design. The front panel includes a detachable terminal block for field wiring and DIP switches or software settings for range selection.
Working Principle: The unit receives analog signals (voltage or current) from sensors. These signals are conditioned and converted into digital values by high-speed ADCs. The digital data is then transferred to the CPU via the backplane bus for processing.
Installation Requirements:
- Mount on CJ series CPU rack or expansion rack
- Connect field wiring to the detachable terminal block
- Use shielded cables for analog signals to reduce noise
- Separate analog signal cables from power lines
Usage Notes:
- Verify the input signal range matches the sensor output.
- Do not apply voltages exceeding the maximum rated input (±15 V).
- Ensure the unit is properly grounded to minimize noise interference.
