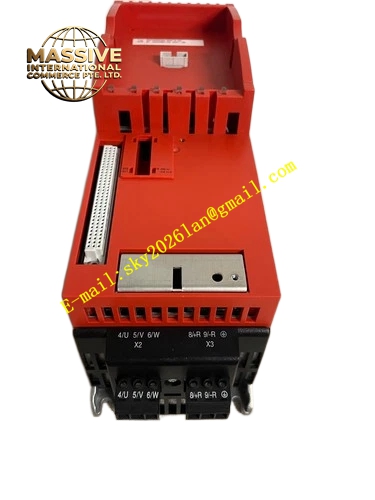

SEW MCF40A0450-5A3-4-00
Technical Specifications: Rated motor power: 45kW Three-phase input voltage: 380VAC – 500VAC Control modes: VFC open-loop flux control, CFC closed-loop current flux vector control Built-in brake chopper, four-quadrant operation Protection class: IP20 Ambient operating temperature: 0℃ ~ +45℃ Cooling method: Forced air cooling
Functional Features: Vertical screw fixed installation inside closed electrical cabinet IP20 protection grade only for cabinet interior Full hardware protection including overcurrent, overvoltage, undervoltage, overtemperature, earth fault, short circuit and encoder fault Closed-loop drive for SEW synchronous servo motors Integrated multi-channel digital and analog I/O terminals Automatic motor parameter identification Parameter backup and restore Optional fieldbus communication cards Built-in absolute and relative positioning function Integrated STO Safe Torque Off safety function Master-slave gearing and simple electronic cam capability
Application Scenarios: Heavy-duty packaging machine main servo axis Large continuous cutting machine positioning servo drive Wide web printing and coating line main roller synchronization Automated heavy gantry sliding table axis control Large rotary indexing table heavy load servo control Metal sheet forming auxiliary servo drive
Performance Parameters: Output frequency range: 0Hz – 600Hz Overload capacity: 150% rated current for 60 continuous seconds Speed control accuracy ±0.01% under CFC closed-loop mode Multi-step speed with independent adjustable acceleration and deceleration ramps Adjustable torque limit and pure torque control mode High-speed encoder signal acquisition and processing
Material Composition: Cold rolled steel sheet housing with powder coating anti-corrosion treatment Multi-layer industrial PCB main control board High-power IGBT inverter module NTC temperature monitoring sensor Gold-plated signal terminals, thick copper high-current power terminals Flame-retardant plastic insulating brackets High-voltage DC bus electrolytic capacitors Built-in large metal heat sink and dual high-performance cooling fan assembly
Structural Characteristics: Vertical compact modular cabinet mounting structure, heavy-duty screw holes on rear panel Front panel equipped with LED indicators for running, fault and bus communication status Main circuit power terminals arranged at upper section, control signal terminals arranged at lower section Side slots reserved for communication option card installation Physical isolation between power cavity and signal cavity to reduce electromagnetic interference
Working Principle: Three-phase AC power enters main circuit terminals. Internal rectifier bridge converts alternating current to stable DC bus voltage. IGBT inverter module outputs adjustable three-phase alternating current to drive synchronous servo motor. Encoder transmits rotor speed and position feedback signal back to inverter control board. CFC closed-loop vector algorithm continuously computes motor flux and torque to dynamically adjust output voltage and frequency to realize high-precision closed-loop speed and positioning regulation. Regenerative energy generated during deceleration flows through built-in brake chopper and dissipates in external brake resistor. Fault conditions trigger hardware protection, cut off power output, activate fault indicator and store fault code in memory.
Installation Requirements: Vertical upright installation only inside closed electrical cabinet, inverted or horizontal installation forbidden Reserve sufficient upper and lower cooling space and do not block cooling fan air inlet and outlet Separate routing for power cables and signal cables, all signal cables adopt shielded cable Input three-phase voltage must match nameplate rated specification Cabinet installation environment excludes dust, corrosive gas and condensed water vapor PE protective earth terminal fastened reliably to cabinet heavy-duty ground busbar Encoder cable uses SEW dedicated shielded cable
Precautions for Use: Wait at least 20 minutes after power-off for full discharge of DC bus capacitor before cover opening and maintenance Verify three-phase input voltage balance before power-on Complete full motor identification procedure during commissioning Capacitors and surge absorbers cannot be paralleled on inverter output side Clean cooling fan and heat sink dust regularly to prevent overtemperature protection ESD anti-static protection required for plugging communication cards and control components External brake resistor must match rated power specification, brake terminal short-circuit prohibited STO safety wiring strictly follows official safety operation manual
