Description

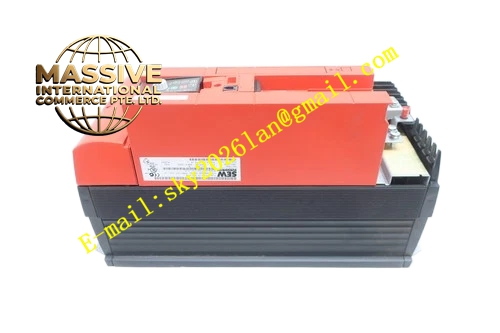

SEW MDX60A0150-503-4-00
Technical Specifications: Rated motor power:15kW Three-phase input voltage:380VAC–500VAC Control modes: VFC open-loop flux control, CFC closed-loop current flux vector control Built-in brake chopper, four-quadrant operation Protection class:IP20 Ambient operating temperature:0℃ to +45℃ Cooling method:Forced air cooling
Functional Features: Modular split design of power unit and control unit Vertical installation inside closed electrical cabinet with screw fastening IP20 protection for cabinet internal application Complete protection including overcurrent, overvoltage, undervoltage, overtemperature, earth fault, short circuit and encoder fault Closed-loop driving for SEW synchronous servo motors Rich digital and analog I/O terminals Automatic motor parameter identification Parameter backup and restore function Multiple optional industrial fieldbus communication cards Built-in positioning function and high precision master-slave synchronization Integrated STO Safe Torque Off safety function Strong overload capacity for heavy inertia load
Application Scenarios: Medium heavy packaging machine main servo drive Printing machine main roller synchronization system Automated warehouse heavy roller conveyor Woodworking machine main spindle servo drive Medium weight lifting positioning mechanism
Performance Parameters: Output frequency range:0Hz–600Hz Overload capacity:150% rated current for 60 continuous seconds Speed control accuracy ±0.01% under CFC closed-loop mode Adjustable independent acceleration and deceleration ramps for multi-step speed Torque limiting and pure torque control mode High-speed encoder signal processing
Material Composition: Thickened cold rolled steel sheet housing with powder coating anti-corrosion High-power multi-layer industrial PCB main control board Large IGBT inverter power module NTC temperature monitoring sensor Gold-plated signal terminals, thick copper high-current power terminals Flame-retardant plastic insulating brackets Large capacity high-voltage DC bus electrolytic capacitors Metal heat sink assembly
Structural Characteristics: Vertical heavy-duty modular cabinet mounting structure with multiple screw fixing holes Separated power cavity and control cavity structure Front multi-channel LED indicators for running, fault and bus communication state Upper high-power main circuit terminals, lower control signal terminals Side expansion slots for communication option cards Independent cooling fan for power unit
Working Principle: Three-phase AC power accesses power unit terminals. Rectifier circuit converts AC to DC bus voltage. IGBT power module outputs adjustable three-phase AC to drive synchronous servo motor. Encoder feeds rotor speed and absolute position signal back to control unit. CFC closed-loop vector algorithm calculates motor flux and output torque dynamically to adjust output voltage and frequency for high precision speed and position control. Regenerative energy during deceleration is consumed on external brake resistor through built-in brake chopper. Fault signal triggers hardware protection and cuts power output immediately.
Installation Requirements: Vertical upright installation inside closed electrical cabinet, inverted or horizontal installation forbidden Reserve large ventilation space and ensure cooling fan air inlet and outlet unobstructed Power cables and signal cables are routed separately, all signal cables adopt shielded cables Three-phase input voltage must match nameplate rating Installation environment excludes dust, corrosive gas and condensed water PE protective earth terminal must be firmly connected to ground busbar Encoder cable must use SEW designated shielded cable
Precautions for Use: Wait at least 15 minutes after power-off for DC bus capacitor full discharge before opening cover for maintenance Check three-phase input voltage consistency before power-on Complete full motor identification during commissioning Capacitors and surge absorbers cannot be connected in parallel at output side Clean cooling fan and heat sink dust periodically ESD anti-static protection must be adopted when replacing communication cards External brake resistor must match power specification, brake terminal short-circuit prohibited STO safety circuit wiring strictly follows official safety manual
