Product Introduction:

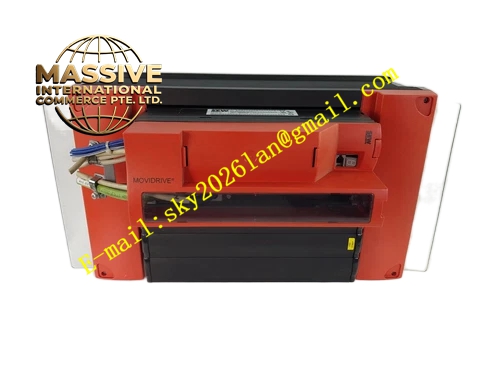

The MDX61B0150-503-4-0T is a 15 kW frequency inverter from the MOVIDRIVE MDX61B series, manufactured by SEW-EURODRIVE. It is designed for medium-power industrial applications including cranes, conveyor systems, and AGV drives. This inverter features built-in vector control technology that decouples motor flux and torque for independent regulation, achieving 15%–20% motor efficiency improvement. It includes an integrated braking chopper with energy feedback capability and V/F curve adaptive function for automatic voltage optimization under light load conditions.

Request Quote
Category:

Description

SEW MDX61B0150-503-4-0T

Technical Specifications:

  • Brand: SEW-EURODRIVE
  • Series: MOVIDRIVE MDX61B
  • Recommended Motor Power: 15 kW
  • Input Voltage: 3-phase AC 380–500V
  • Continuous Output Current: 32 A
  • Output Frequency Range: 0–550 Hz
  • Dynamic Response Time: ≤10 ms
  • Torque Control Accuracy: ±1%
  • Protection Rating: IP20 (standard), IP65 (optional)
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +70°C

Functional Features:

  • Vector Control Technology: Independent regulation of motor flux and torque for 15%–20% efficiency improvement
  • Energy Feedback Function: Built-in braking chopper feeds energy back to the grid with 98% efficiency
  • V/F Curve Adaptive Function: Automatically reduces output voltage under light load, saving 8%–12% energy
  • Safety Functions: Compliant with EN 61800-5-2, integrated STO (Safe Torque Off) and SS1/SS2 (Safe Stop) without external safety relay
  • Rapid Module Replacement: Power unit replaceable within 10 minutes
  • Fault Log: Records last 50 alarm events for efficient troubleshooting

Application Scenarios:

  • Crane and hoisting equipment
  • Conveyor system drives
  • AGV (Automated Guided Vehicle) propulsion
  • CNC machine tool spindle control
  • Automated production line drives
  • Pump and fan energy optimization
  • Solar tracking panel motor drive (±0.05° positioning accuracy, 7%–10% power generation improvement)

Performance Parameters:

  • Overload Capacity: 150% rated load for 60 seconds
  • Dynamic Response Time: ≤10 ms
  • Torque Control Accuracy: ±1%
  • Energy Feedback Efficiency: 98%
  • V/F Adaptive Energy Savings: 8%–12%

Material Composition:

  • Industrial-grade IGBT power modules
  • Modular power unit design for rapid replacement
  • Aluminum heat sink with forced air cooling
  • Integrated safety function circuitry

Structural Features:

  • Modular design with rapid power unit replacement capability
  • Expansion slots for fieldbus and I/O option cards
  • Integrated braking chopper
  • Safety function terminals (STO, SS1, SS2)
  • LED status and fault indicators
  • Fault log memory

Working Principle:
The inverter uses vector control to decompose motor current into flux-producing and torque-producing components through coordinate transformation. This enables independent regulation of magnetic flux and electromagnetic torque, optimizing motor efficiency across the entire operating range. The energy feedback function captures braking energy and returns it to the DC bus or grid, minimizing energy waste. The V/F adaptive function monitors load conditions and automatically adjusts the voltage-to-frequency ratio to reduce
