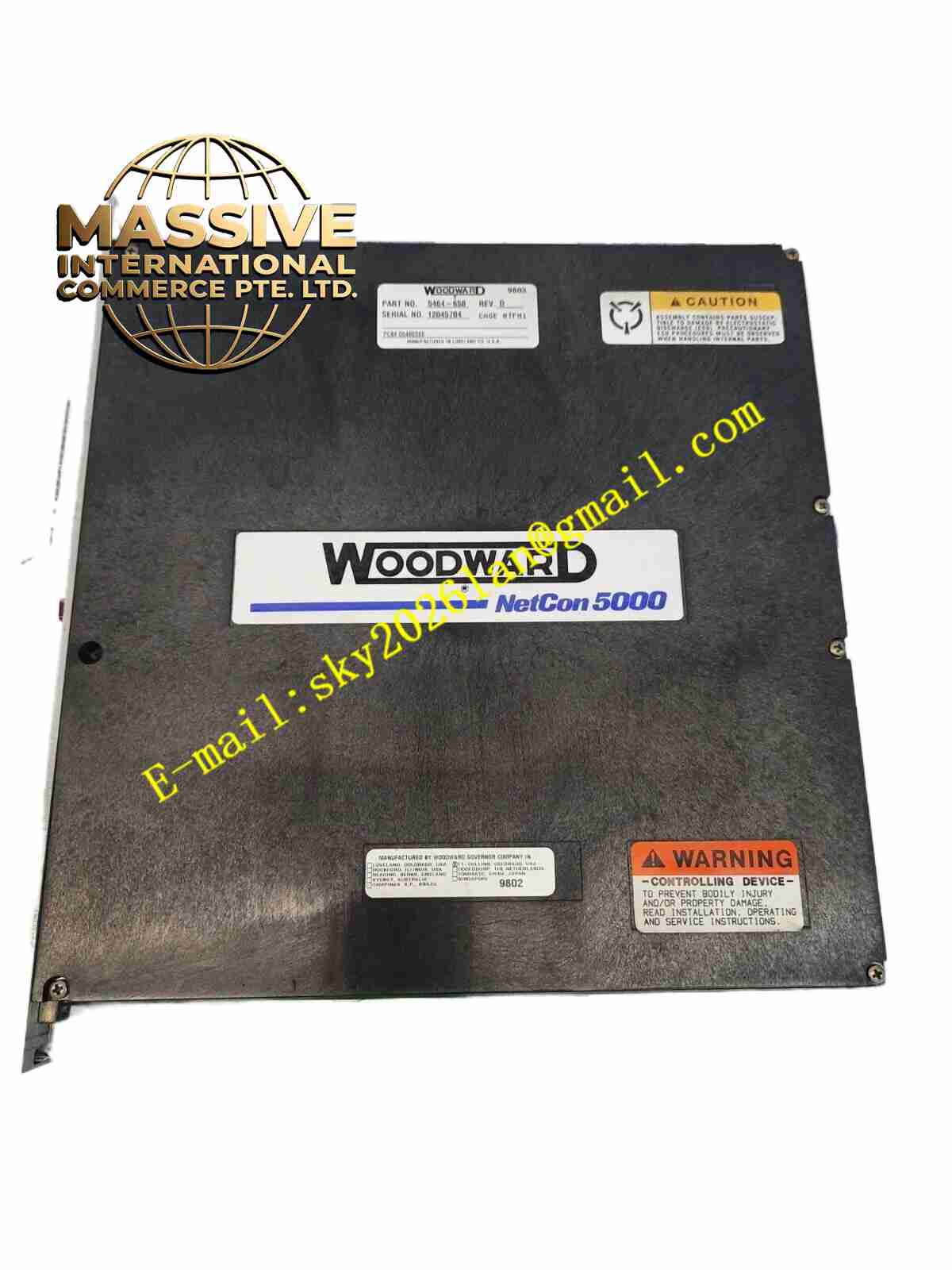

Woodward 5464-662
Technical Specifications
- Product Type: Communication Gateway Module.
- Protocols: Modbus TCP/IP, OPC UA, Ethernet/IP.
- Ports: Dual Ethernet ports for redundancy or daisy-chaining.
- Data Rate: 10/100 Mbps auto-negotiating.
Functional Features
- Protocol Conversion: Translates internal MicroNet data to standard industrial protocols.
- Redundancy: Supports ring or star network topologies.
- Security: Built-in firewall and access control features.
- Diagnostics: Network health monitoring and packet statistics.
Application Scenarios
Connecting turbine controllers to DCS, SCADA, MES, or cloud-based monitoring platforms.
Performance Parameters
- Latency: Low-latency data exchange.
- Throughput: High-bandwidth data transfer for trending and logging.
Material Composition
Industrial-grade networking components. Shielded enclosure for EMI protection.
Structural Characteristics
Standard module form factor. Front panel features Ethernet ports and link/activity LEDs.
Working Principle
Bridges the MicroNet backplane to the Ethernet network. Packages process data into protocol-specific messages and routes them to configured destinations.
Installation Requirements
Use CAT5e or CAT6 shielded Ethernet cables. Configure IP addresses and subnet masks via the engineering tool.
Usage Precautions
- Ensure network configuration does not conflict with other devices.
- Verify protocol settings match the host system.
- Secure the module against unauthorized access.
