Description

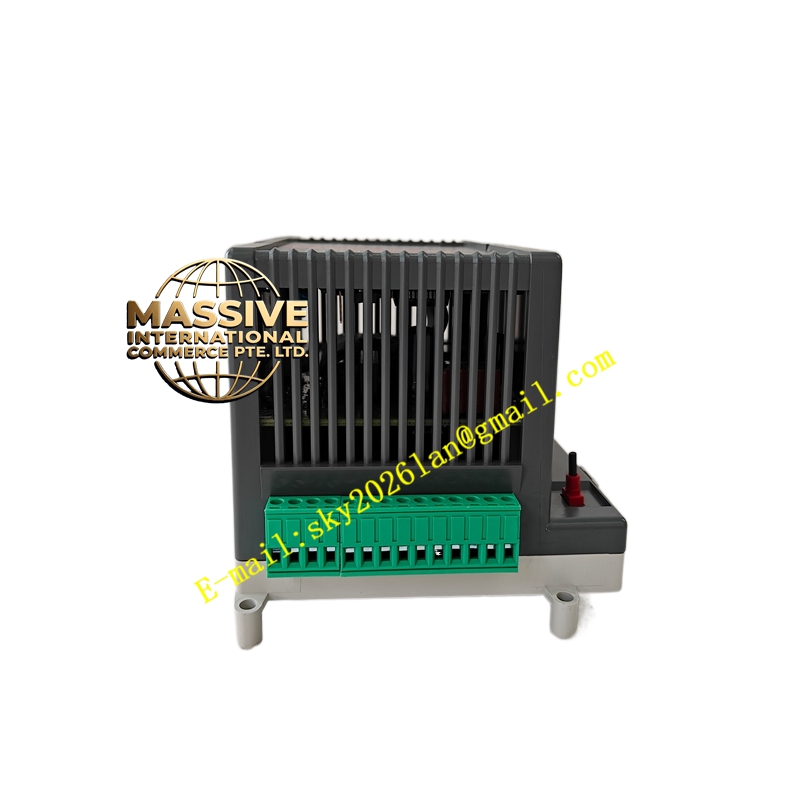

ABB 07AI90-S GJR5251200R0202
Technical Specifications:
- Module Type: Digital Input (DI) Module.
- Channel Count: 16 independent input channels.
- Input Type: Dry contact (Voltage-free).
- Power Supply: 24 V DC.
- Operating Temperature Range: -20°C to +60°C.
- Dimensions: 140 mm (Height) x 85 mm (Width) x 120 mm (Depth).
- Weight: 0.48 kg.
- Certifications: CE, UL, CSA.
Functional Features:
- High-Density I/O: Provides 16 discrete inputs in a compact footprint, maximizing rack space utilization.
- Universal Compatibility: Seamlessly integrates with various control protocols and ABB automation architectures.
- Rugged Design: Built with premium materials to withstand harsh industrial environments, including electrical noise and temperature fluctuations.
- Optimized Maintenance: Features intuitive wiring connections and clear status indicators for rapid deployment and troubleshooting.
Application Scenarios:
- Discrete manufacturing and automated assembly lines.
- Status monitoring of valves, motors, and safety interlocks.
- Integration into legacy and modern ABB DCS/PLC systems.
- Material handling and conveyor control systems.
Material Composition & Structural Characteristics:
- Enclosure: High-impact, flame-retardant industrial plastic housing.
- Circuitry: Multi-layer PCB with optical isolation components to protect the controller from field voltage spikes.
- Connectors: Front-access terminal blocks or high-density connectors for secure field wiring.
- Indicators: Front-panel LED array providing individual channel status and module health diagnostics.
Working Principle:
The module receives 24 V DC power from the system backplane. When a dry contact connected to an input channel closes, it completes a circuit to the common return. Internal optocouplers isolate the field signal from the internal logic, converting the physical switch state into a digital binary signal. This data is continuously scanned and transmitted to the central CPU via the backplane bus for logic processing.
Installation Requirements:
- Backplane Mounting: Slide the module onto the designated DIN rail or backplane slot until the locking mechanism engages securely.
- Wiring: Use appropriately gauged copper wire and ensure tight terminal screw torque to prevent intermittent connections.
- Grounding: Verify that the system chassis and backplane are properly grounded to ensure signal integrity.
- Clearance: Maintain adequate spacing around the module for natural convection cooling.
Usage Precautions:
- Voltage Limits: Never apply voltages exceeding the 24 V DC rating to the input terminals to prevent internal component failure.
- Wet Contacts: Since this is a dry contact module, do not connect active voltage sources directly to the input channels.
- Hot-Swapping: Verify if the specific controller supports hot-swapping; otherwise, power down the rack before installing or removing the module.
- ESD Protection: Always use an ESD wrist strap when handling the module to protect sensitive microelectronics.
