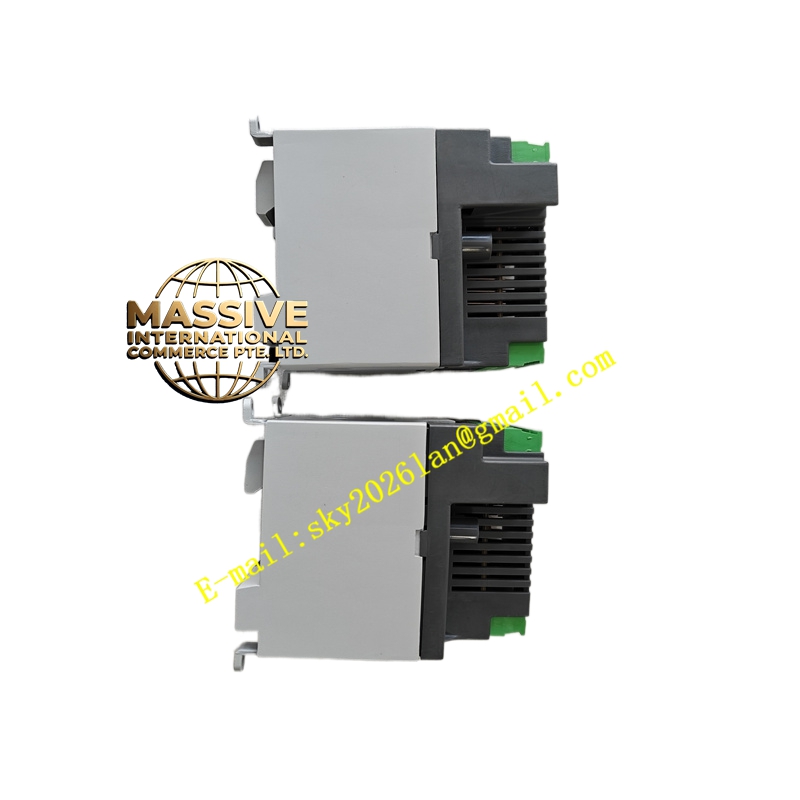

ABB 1SAP800400R0010
Technical Specifications:
- Input Voltage: Wide range AC input from 85V to 264V, ensuring global grid compatibility.
- Output Specifications: 24V DC output with a maximum continuous current of 40A.
- Energy Efficiency: High-efficiency rating of up to 94%, significantly reducing heat generation and operational costs.
- Dimensions: Compact form factor measuring 80mm (W) x 125mm (H) x 195mm (D).
- Weight: Approximately 1.2 kg.
- Operating Temperature: Reliable performance in extreme environments ranging from -25°C to +70°C.
- Certifications: CE, UL certified, and fully RoHS compliant.
Functional Features:
- Power Boost Function: Integrated temporary overload capability to handle peak loads during the startup phases of connected equipment.
- Integrated Diagnostics: Front-panel LED indicators provide real-time operational status feedback, simplifying troubleshooting.
- Compact Design: Slim profile allows for space-saving installation in densely packed control cabinets.
- Standard Mounting: Designed for quick and secure DIN rail mounting.
Application Scenarios:
- Powering robotic arms and conveyor systems in automotive manufacturing plants.
- Supplying stable power to flow sensors and actuators in wastewater treatment facilities.
- Driving precise timing controls in high-speed packaging machinery.
Material Composition & Structural Characteristics:
- Enclosure: Ruggedized industrial housing designed to withstand harsh manufacturing environments.
- Internal Components: High-grade electronic components optimized for high-efficiency power conversion.
- Terminals: Heavy-duty screw terminals for secure and reliable field wiring.
Working Principle:
The module accepts a wide range of AC input voltages, rectifies and filters the power, and utilizes high-frequency switching technology to step down and regulate the voltage to a precise 24V DC output. The power boost function temporarily increases the current limit to accommodate motor inrush currents before returning to the nominal 40A continuous rating.
Installation Requirements:
- Mounting: Securely snap the module onto a standard DIN rail within the control cabinet.
- Ventilation: Ensure adequate clearance and airflow around the module, as overheating will reduce the lifespan of the power supply.
- Wiring: Strictly adhere to local electrical codes and verify polarity before applying power.
Usage Precautions:
- Maintenance: Perform regular cleaning to prevent dust accumulation and periodically check firmware versions if applicable.
- Handling: Avoid exposing the module to extreme mechanical shock or corrosive atmospheres.
- Calibration: Routine calibration is generally not required unless the module is operated under extreme conditions.
