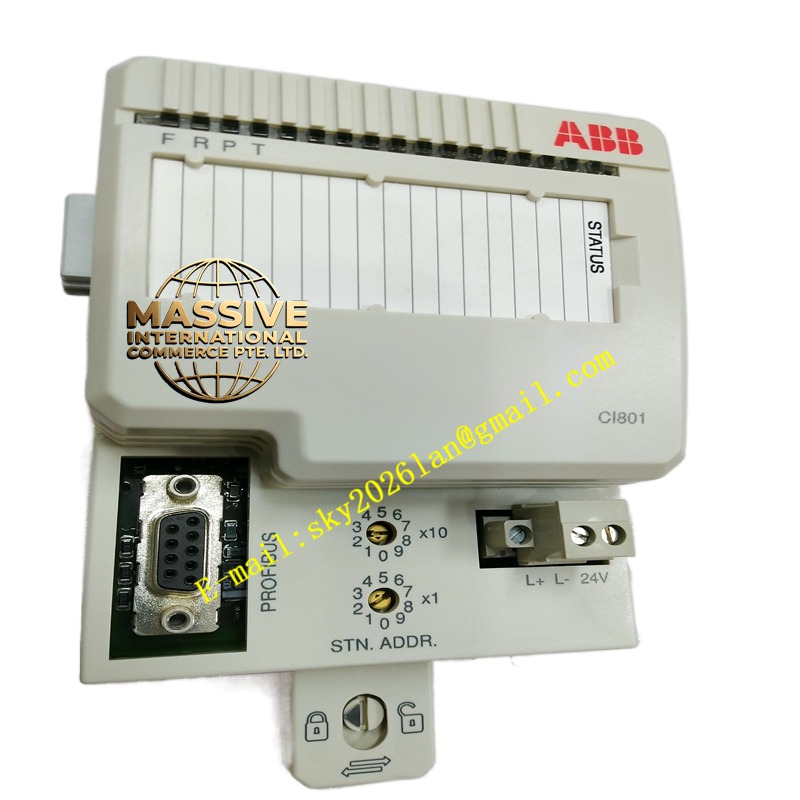

ABB 3BSE022366R1

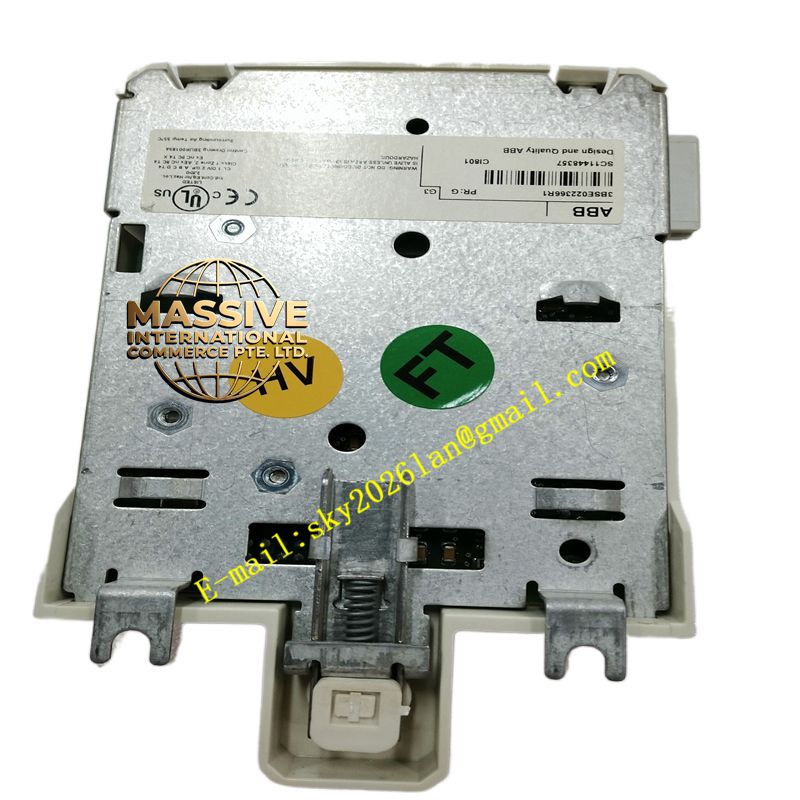

ABB 3BSE022366R1 - Image 2

ABB 3BSE022366R1

Product Introduction:
The ABB 3BSE022366R1 is a high-performance expansion communication module belonging to the ABB S800 I/O system series. Designed specifically for industrial automation environments, it acts as a vital communication interface supporting the PROFIBUS-DP fieldbus protocol. This module facilitates high-speed, reliable data exchange between central controllers (such as PLCs or DCS systems) and distributed field devices, ensuring seamless integration within complex industrial networks.

Request Quote
Category: SKU: ABB 3BSE022366R1

Description

ABB 3BSE022366R1

Technical Specifications:

  • Brand: ABB (Switzerland)
  • Model Number: 3BSE022366R1
  • Product Series: S800 I/O System
  • Communication Protocol: PROFIBUS-DP (Slave Mode)
  • Communication Rate: 9.6 Kbps to 12 Mbps (Auto-adaptive)
  • Interface Type: RS-485 (Compliant with PROFIBUS-DP standards)
  • Data Exchange Capacity: Maximum 244 bytes for both input and output
  • Operating Voltage: 24 V DC (Typically supplied via the controller backplane)
  • Power Consumption: ≤ 5 W
  • Operating Temperature Range: 0°C to 60°C
  • Protection Rating: IP20 (Requires installation inside a control cabinet)

Functional Features:

  • High-Speed Data Transmission: Supports automatic adaptation of communication rates up to 12 Mbps, ensuring real-time data synchronization.
  • Comprehensive Diagnostics: Equipped with LED status indicators for power, communication status, and fault detection to enable rapid troubleshooting.
  • Hot-Swappable Design: Supports plug-and-play functionality, allowing for module replacement without shutting down the entire system.
  • Redundancy Support: Capable of redundant configuration (requires pairing) to maximize system reliability and minimize downtime.
  • Advanced Configuration: Easily configured using the ABB 800xA engineering tool, supporting hot configuration and HART pass-through.

Application Scenarios:

  • Industrial Automation: Seamless integration and communication with PLCs, DCS systems, and variable frequency drives.
  • Process Control: Distributed data acquisition and control in petrochemical, oil and gas, and power generation plants.
  • Smart Manufacturing: Enhancing system flexibility by integrating third-party equipment (e.g., Siemens S7-300/400 PLCs or ABB ACS800/ACS880 drives).
  • Water Treatment: Reliable data transmission for municipal water supply and wastewater monitoring systems.

Performance Parameters:

  • Current Consumption: 807 mA
  • Heat Dissipation: 8.9 BTU/hour
  • Response Time: Millisecond-level data processing and transmission
  • Electrical Isolation: Robust galvanic isolation to protect against industrial electrical noise and ground loops

Material Composition & Structural Features:

  • Enclosure Material: Durable metal casing providing excellent mechanical protection and electromagnetic shielding.
  • Dimensions: Compact form factor measuring 58.5 mm (depth) × 136 mm (height) × 85.6 mm (width)
  • Weight: Approximately 0.3 kg (net weight)
  • Environmental Compliance: Fully compliant with EU RoHS Directive (2011/65/EU) and WEEE Category 5 standards.

Working Principle:
The module operates as a PROFIBUS-DP slave device. It continuously monitors the RS-485 physical bus for data frames addressed to its specific node. Upon receiving valid data, it processes the commands and maps the information to the corresponding I/O channels on the backplane. Conversely, it collects real-time status data from local I/O modules and transmits it back to the master controller at deterministic intervals.

Installation Requirements:

  • Bus Termination: Must install a 220Ω terminating resistor at both physical ends of the PROFIBUS bus to prevent signal reflections.
  • Cabling: Use standard PROFIBUS-compliant shielded twisted-pair cables to ensure signal integrity.
  • Environment: Install exclusively within a climate-controlled control cabinet to protect against dust, moisture, and direct sunlight.
  • Addressing: Ensure the physical PROFIBUS address is correctly set and matches the master station’s configuration.

Usage Precautions:

  • Electrostatic Discharge (ESD): Always use proper ESD grounding straps when handling or installing the module to prevent internal circuit damage.
  • Compatibility Check: Be aware that the base system software does not support direct compatibility with specific I/O modules, including DI825, DI830, DI831, DI885, AI880, DI880, and DO880.
  • Maintenance: Regularly inspect the physical connections and terminal resistors. If the red ‘ERR’ LED illuminates, immediately check the baud rate settings, cable continuity, and address configurations.
  • Power Safety: Always ensure proper grounding of the control cabinet to minimize electrical interference and ensure personnel safety.
