Description

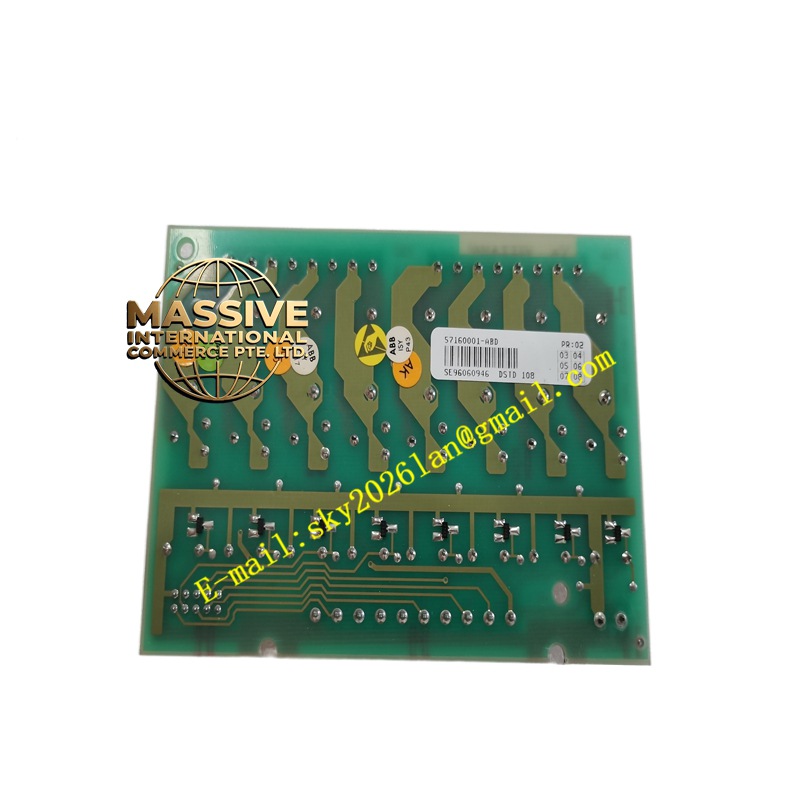

ABB DSTD108
Technical Specifications:
- Configuration: Combined digital inputs and outputs.
- Voltage Rating: 24 V DC.
- System Compatibility: ABB S800 I/O and Advant systems.
Functional Features:
- Space Optimization: Reduces module count by combining I/O functions.
- Diagnostic Feedback: Reports wire breaks and short circuits for both inputs and outputs.
- Fail-Safe Operation: Configurable safe states during bus failures.
Application Scenarios:
- Small remote I/O stations with limited space.
- Machine control applications requiring both sensing and actuation.
Performance Parameters:
- Response Time: Fast switching for precise sequential control.
- Isolation: Galvanic isolation between field and system sides.
Material Composition & Structural Features:
- Housing: Flame-retardant industrial plastic enclosure.
- Terminals: Clearly labeled screw or spring-clamp connections.
Working Principle:
Acquires discrete field signals through isolated inputs and switches outputs based on controller commands, all managed through a single backplane interface.
Installation Requirements:
- Mount on standard DIN rail or S800 baseplate.
- Separate input and output wiring to prevent cross-interference.
Usage Precautions:
- Verify load current ratings for output channels.
- Use flyback diodes for inductive output loads if not internally protected.
