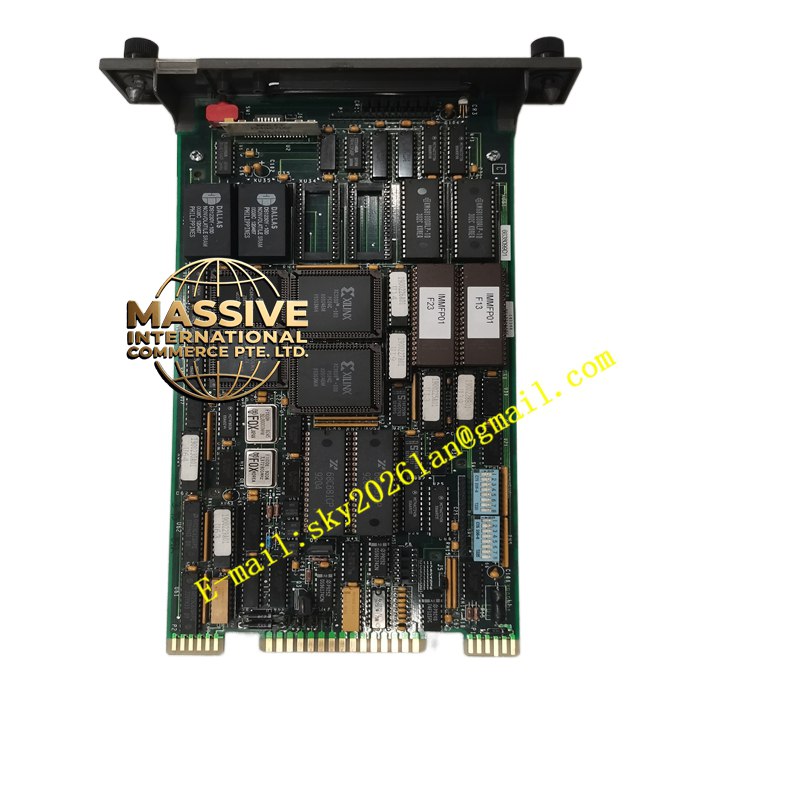

ABB IMMFP01
Technical Specifications:
- System Architecture: INFI 90 Process Control Network
- Processing Capability: Supports advanced PID, feedforward, cascade, and custom logic control.
Functional Features:
- High-Speed Computation: Extremely short scan cycles for fast closed-loop control.
- Large Capacity Memory: Ample storage for control strategies and historical data.
- Redundancy Support: Supports 1:1 hot standby redundancy for bumpless transfer.
Application Scenarios:
Acts as the core control station in DCS systems for critical processes like boilers, steam turbines, and chemical reactors.
Performance Parameters:
- Reliability: Exceptionally high Mean Time Between Failures (MTBF).
- Synchronization: Millisecond-level primary/backup synchronization refresh.
Material Composition:
Core utilizes an industrial-grade 32-bit microprocessor. The PCB features multi-layer immersion gold plating and comprehensive conformal coating.
Structural Features:
Standard INFI 90 module size with multiple front-panel LEDs indicating run, fault, and primary/backup status. Supports battery-backed data retention.
Working Principle:
Periodically reads field data from I/O modules, executes downloaded control logic, calculates output values, writes them back to I/O modules, and exchanges data with other nodes via the Controlway bus.
Installation Requirements:
Must be installed in designated processor slots. For redundant configurations, ensure primary and backup modules have identical part numbers and firmware versions.
Usage Precautions:
Always perform an offline backup before downloading new logic. Handle with care to prevent electrostatic damage. Monitor battery status and replace periodically to save configuration data.
