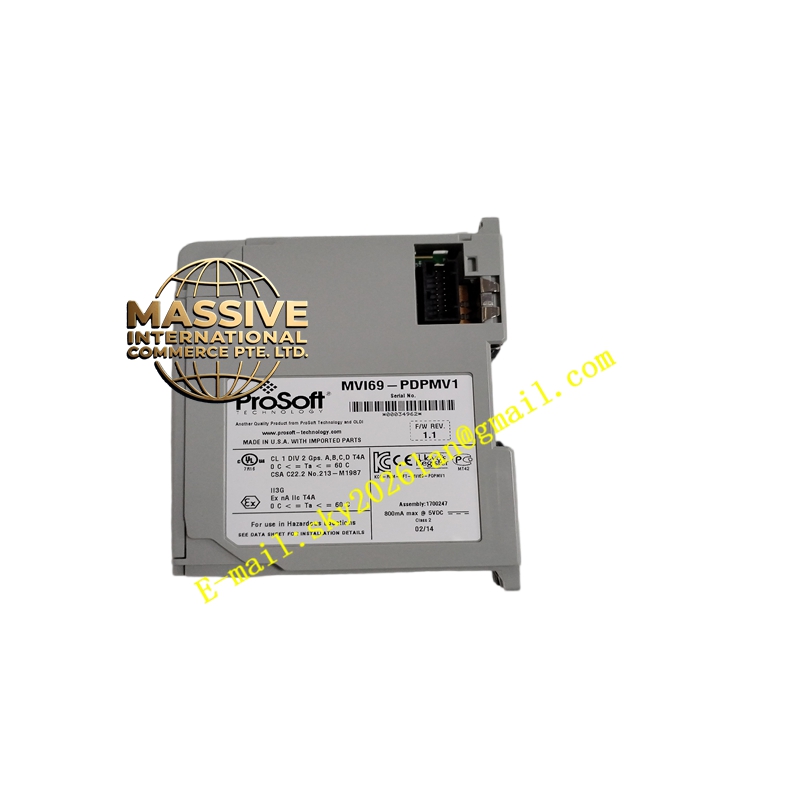

ABB MVI69-PDPMV1
- Technical Specifications:
- Protocol: Profibus DP-V0 and DP-V1 (Master or Slave configurable)
- Port: 1 × 9-pin D-sub female (RS-485 isolated), 9.6 kbps – 12 Mbps auto-negotiate
- Max Slaves (as Master): 125 (theoretical); practical limit depends on rack scan time — typical 32–64
- I/O Image: Configurable input/output data blocks (up to 244 bytes IN / 244 bytes OUT per slave PPO)
- Acyclic Services: DP-V1 Record Read/Write (for drive parameter access — e.g., ABB drive parameter PPO5/PPO6)
- Power: From backplane (5 V DC, typ. 300 mA)
- Indicators: Module Ready, Error, Active, Configured, Profibus Activity LEDs
- Configuration: Via ProSoft Configuration Builder (PCB) software — import GSD file of slave device (e.g., ABB RPBA-01.gsd)
- Operating Temp.: 0 °C to +60 °C
- Certifications: CE, UL, cUL, Profibus International Certified
- Functional Features / Application / Structure / Working Principle / Installation / Precautions:
- Used to integrate ABB drives (ACS800 with RPBA-01) into a CompactLogix or AC500-with-Profibus-master system
- Import ABB drive GSD file → set PPO type (usually PPO type 3 or 5) → assign I/O addresses → download to module
- Connect Profibus cable with A/B wiring (+/- polarity); terminate both ends with 220 Ω resistor
- Precaution: Verify baud rate matches all slaves; reversing A/B wires prevents communication. For DP-V1 parameter access ensure acyclic message timeout is set appropriately in logic.
