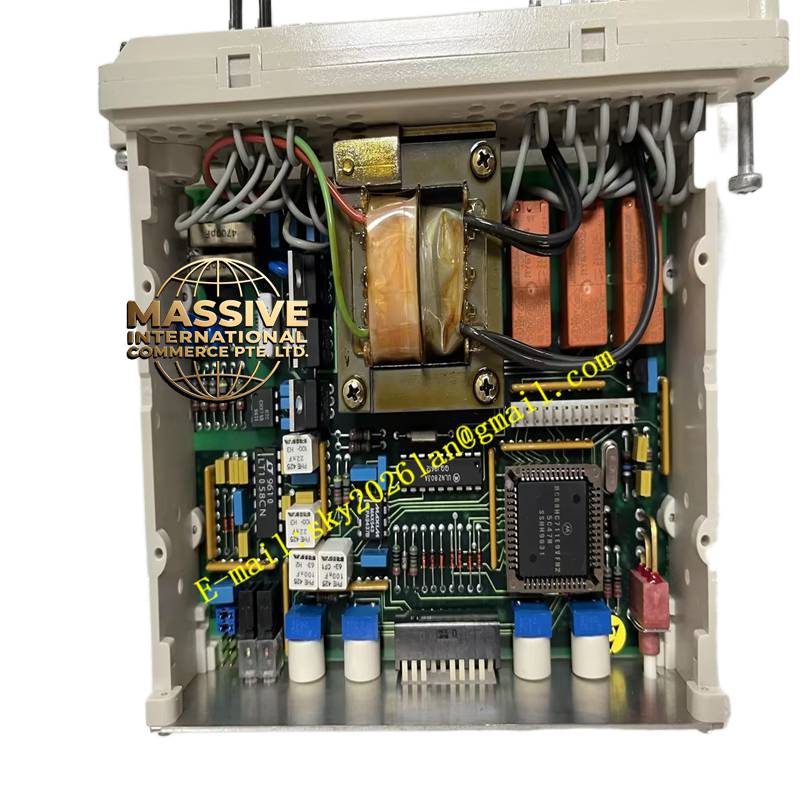

ABB RXIDK2H (1MRK000838-HA)

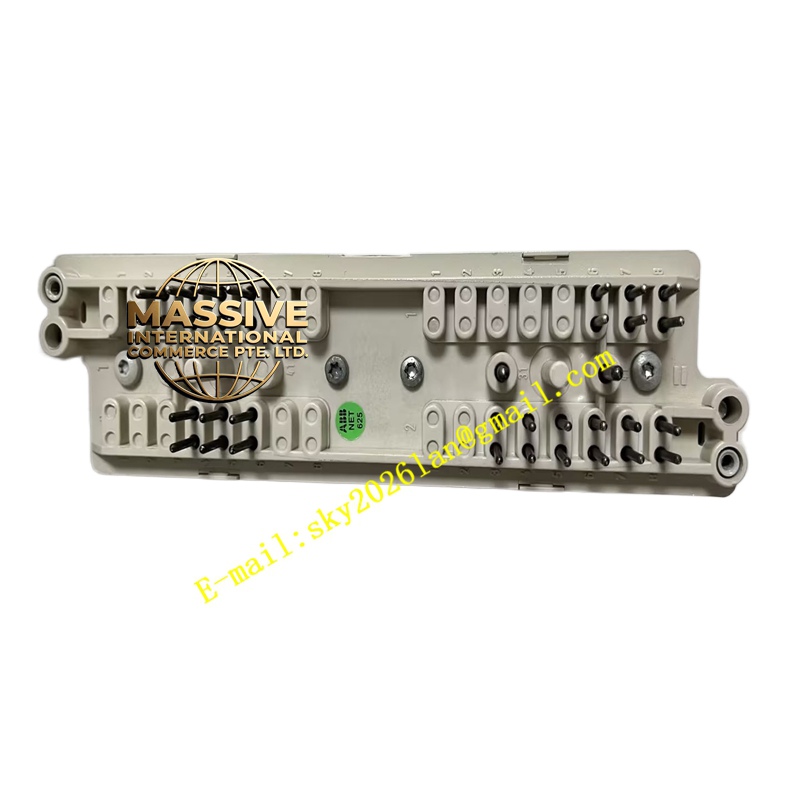

ABB RXIDK2H (1MRK000838-HA) - Image 2

ABB RXIDK2H (1MRK000838-HA)

Product Brief (Legacy RET520/RET521 Expansion — for info only):

  • Adds 8–16 extra binary inputs (wet / dry)
  • IRIG-B AM/DC input (BNC) for time sync to relay’s RTC
  • Connects to RET520 backplane
  • Mounts in dedicated slot in RET520 case or on DIN rail beside RET521
  • Used in plants with mixed old RET520 + new RELION — kept as spare for old units
Request Quote
Category: SKU: ABB RXIDK2H (1MRK000838-HA)

Description

ABB RXIDK2H (1MRK000838-HA)

Application / Material / Structure / Working Principle / Installation / Precautions:

  • If you have a live RET520/RET521 system: install per legacy manual — plug into expansion slot; wire IRIG-B BNC from GPS clock; assign BI functions in RET520 setting group
  • If your plant is all RELION 615/670: you do NOT need RXIDK2H​ — time sync is via IRIG-B on IED rear terminal or PTP (IEEE 1588v2) on Ethernet; extra BI are on IED itself (8–16 BI standard)
  • Precaution (legacy only):​ Verify firmware compatibility with RET520 HW version; keep spare if supporting legacy RET520 — no new procurement recommended for greenfield
