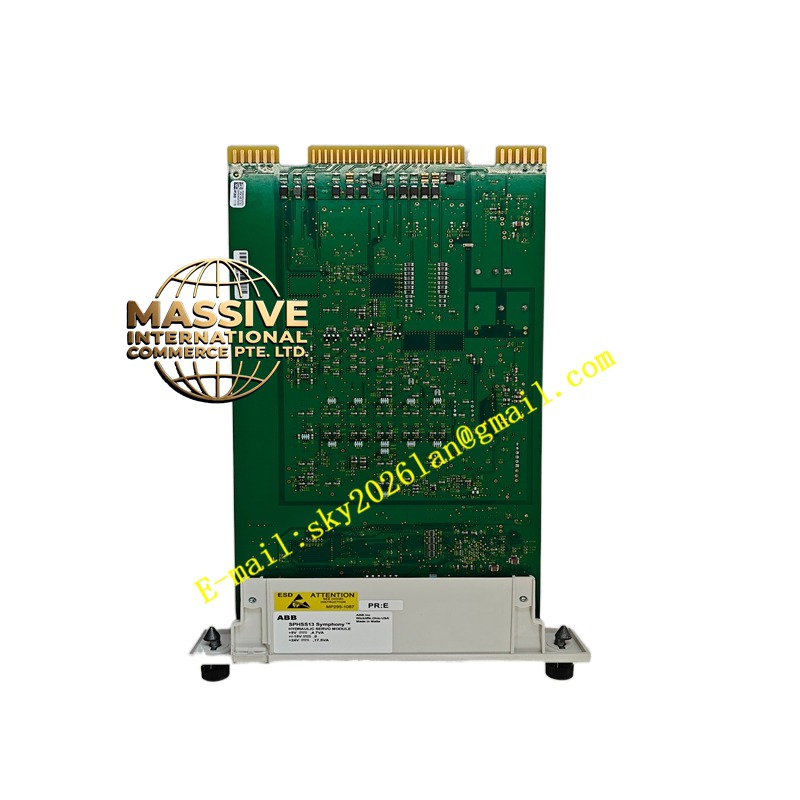

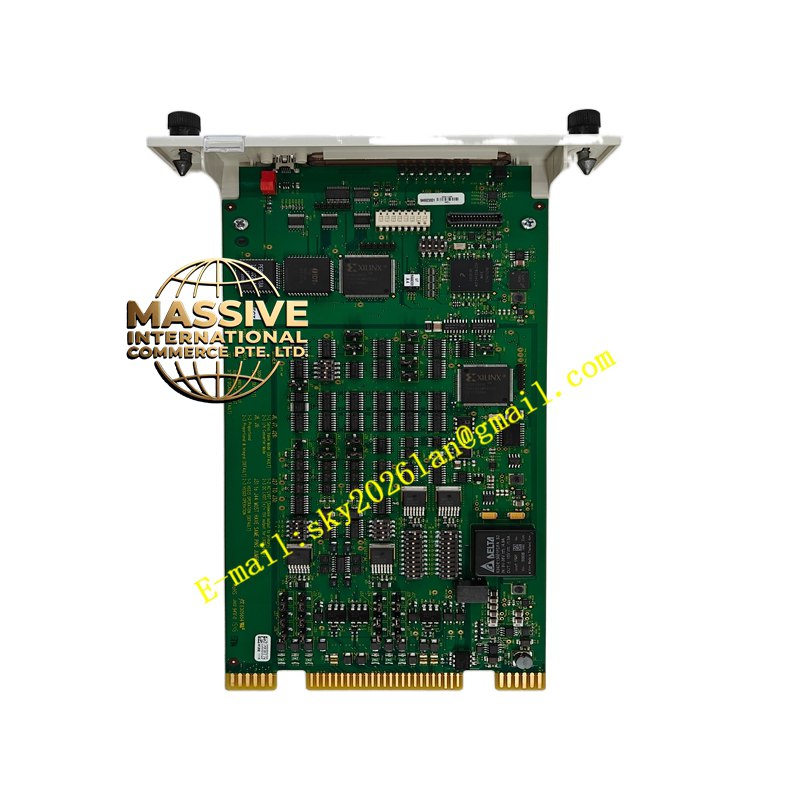

ABB SPHSS13
Technical Specifications:
- Output Type: Precision analog/digital servo control signals.
- Signal Compatibility: Interfaces with standard industrial servo valves.
- Control Loop: Integrated high-speed closed-loop control processing.
- Resolution: High-resolution feedback processing for precise actuator positioning.
Functional Features:
- Closed-Loop Control: Continuously compares feedback signals with setpoints to adjust servo valve positioning.
- Diagnostics: Monitors servo valve health, feedback integrity, and loop stability.
- Fast Response: Optimized processing for real-time hydraulic actuation.
- Ramp Generation: Built-in ramping functions to ensure smooth actuator movement and prevent mechanical shock.
Application Scenarios:
- Turbine governor control in power generation.
- Precision thickness control in steel rolling mills.
- Hydraulic press and injection molding machine control.
Material Composition & Structural Characteristics:
- Design: Ruggedized industrial PCB with conformal coating.
- Connectors: High-density connectors for interfacing with the NTHS03 termination unit and associated cabling.
- Mounting: Standard Symphony/INFI 90 plug-in card format.
Working Principle:
The controller sends a position or velocity setpoint to the SPHSS13. The module generates the corresponding drive signal for the servo valve while simultaneously reading the LVDT or potentiometer feedback from the hydraulic cylinder. It continuously adjusts the output to minimize the error between the setpoint and actual position.
Installation Requirements:
- Connect to the appropriate hydraulic servo termination unit (e.g., NTHS03).
- Use high-quality, shielded feedback cables to prevent noise injection into the control loop.
- Ensure proper grounding of the hydraulic actuator and valve body.
Usage Precautions:
- Verify the servo valve coil resistance and current ratings before applying power.
- Perform closed-loop tuning carefully to prevent hydraulic instability or oscillation.
