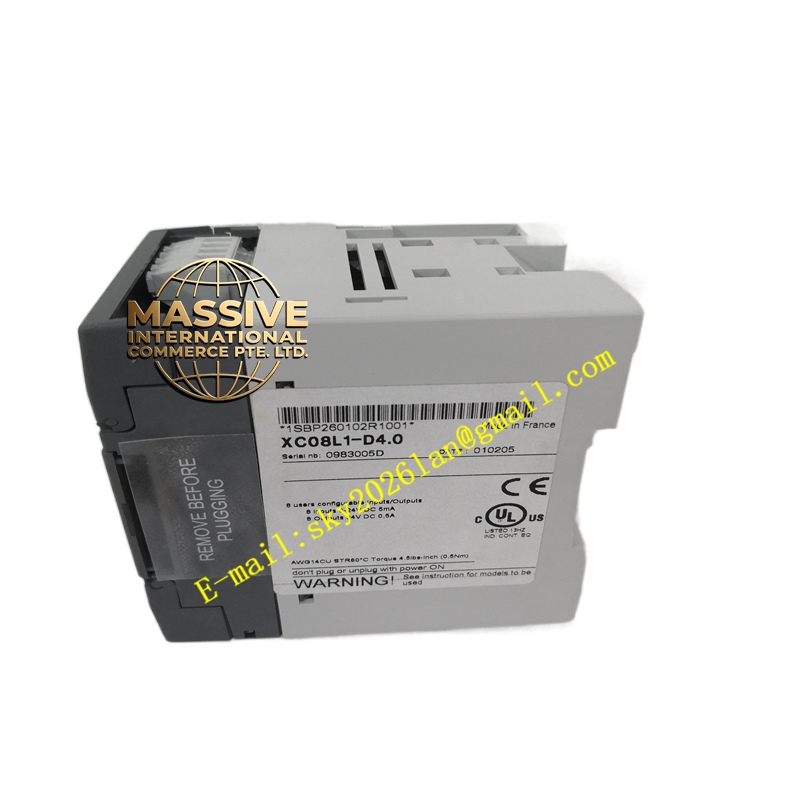

ABB XC08L1
Technical Specifications:
- Input Channels: 8 digital input channels, 0-24V DC, 5mA per channel.
- Output Channels: 8 digital output channels, 24V DC, 0.5A per channel.
- Interface Type: I/O Bus.
- Operating Temperature Range: -20°C to +60°C.
- Protection Rating: IP65.
- Dimensions: 100mm x 100mm x 50mm.
Functional Features:
- High Reliability: Engineered to operate stably under various harsh industrial environmental conditions.
- High Flexibility: Features configurable input and output channels to adapt to diverse industrial application requirements.
- Strong Expandability: Provides extra digital I/O points, facilitating the connection of additional external sensors and actuators.
Application Scenarios:
Widely utilized in industrial automation systems (including frequency converter and PLC control systems), building automation (lighting, ventilation, HVAC), discrete control, process control, motion control, and robotic control systems.
Performance Parameters:
- Signal Integrity: Maintains stable signal transmission across the I/O bus.
- Load Capacity: Each output channel supports up to 0.5A continuous current.
Material Composition:
Housed in a durable aluminum alloy casing that provides excellent heat dissipation and mechanical protection.
Structural Features:
Compact and modular design with robust I/O bus connectors ensuring secure integration into the control cabinet backplane.
Working Principle:
Connects to the main controller via the I/O bus, receiving configuration parameters and actively scanning input states while executing output commands based on the central logic.
Installation Requirements:
Mount securely within the designated expansion slot. Ensure the operating environment temperature remains within the -20°C to +60°C range.
Usage Precautions:
Verify the voltage and current ratings of connected field devices to prevent overloading the 0.5A output channels. Maintain the IP65 protection level by ensuring all cable glands are properly tightened.
