Description

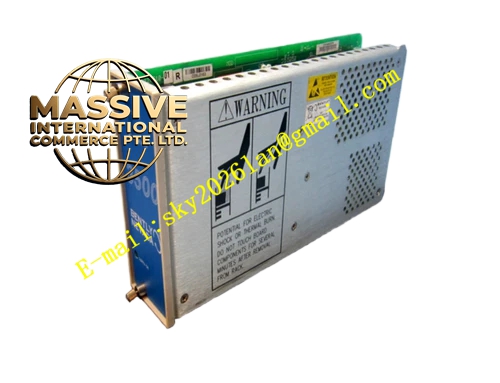

Bently 127610-01
Technical Specifications
- Part Number: 127610-01
- Module Type: 3500/15 Universal AC Power Supply (Front Panel Assembly)
- Input Voltage: 100-240 VAC, 50/60 Hz
- Output Voltage: Regulated +24 VDC
Key Features
- Universal Input: Accepts a wide range of global AC voltages without manual switching.
- Redundancy Support: Designed to be paired with a second power supply in the framework for 1:1 hot-swappable redundancy.
- Comprehensive Protection: Includes built-in over-voltage, under-voltage, and short-circuit protection mechanisms.
- Status Indication: Features front-panel LEDs to clearly indicate normal operation and fault conditions.
Application Scenarios
Installed in the left-most slots of any 3500 framework to provide reliable, uninterrupted power to critical vibration and displacement monitoring systems in power plants, refineries, and manufacturing facilities.
Performance Parameters
- Output Current: Up to 5A continuous (depending on specific configuration)
- Operating Temperature: -30°C to +65°C
Material Composition
Constructed with high-grade industrial plastics for the front bezel and robust metallic internal components for superior heat dissipation and EMI shielding.
Structural Characteristics
Half-height module form factor. It must be strictly installed in the designated left-side power slots of the 3500 rack. When two are installed, the lower slot acts as the primary and the upper as the backup.
Working Principle
The module utilizes advanced solid-state switching technology to step down and rectify the incoming AC voltage. It then regulates this power to a stable +24 VDC output distributed across the framework’s backplane, while continuously monitoring its own health.
Installation Requirements
Must be installed in the left-most power slots. Ensure the framework ground is properly connected. Supports hot-swapping, allowing replacement without powering down the rack.
Usage Precautions
Do not mix legacy 3500 power supplies with Universal AC power supplies in the same framework. Always verify the front panel LED status to ensure the redundant power supply is functioning correctly.
