Description

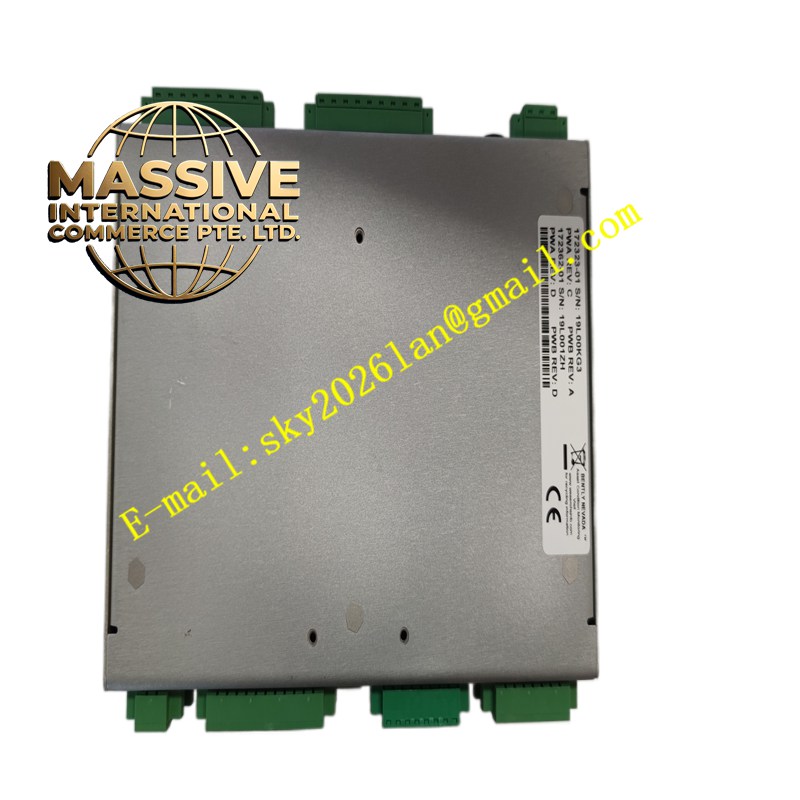

Bently 330103‑00‑08‑05‑02‑05
Technical Specifications:
- Sensing Tip Diameter: 8 mm
- Thread Specification: M10 × 1 metric full‑thread housing
- Unthreaded Segment Length: 0 mm
- Overall Probe Case Length: 80 mm
- Integrated Probe Cable Length: 0.5 meter
- Connector Type: ClickLoc miniature coaxial connector, fitted with connector protector
- Sensitivity: 7.87 V/mm
- Linear Measurement Range: 0.25 mm ~ 2.30 mm
- Recommended Operating Gap: 1.27 mm (50 mils)
- Frequency Response: 0 Hz to 10 kHz
- Probe Operating Temperature: ‑52 °C ~ +177 °C
- Cable Operating Temperature: ‑52 °C ~ +177 °C
- System Supply Voltage: ‑17.5 Vdc ~ ‑26 Vdc
- Max Working Current: 12 mA
- Certifications: CE, UL, IECEx hazardous‑area certification Functional Features:
- Non‑contact measurement without mechanical wear against rotating target surface
- High linearity output within full valid measuring range
- Excellent temperature stability for long‑term continuous online monitoring
- ClickLoc quick‑lock gold‑plated connector, finger‑tight installation without special torque tools
- External connector protector prevents connector pin contamination and mechanical damage
- Compatible with 3300‑XL Proximitor sensor, 3500 series monitoring racks and System 1 condition‑monitoring software
- Supports radial vibration, axial thrust position, eccentricity and Keyphasor phase‑speed measurement
- No requirement for individual component pairing, supports field interchangeability of qualified 3300‑XL series parts Application Scenarios:
- Radial shaft‑vibration monitoring for steam turbines, gas turbines and centrifugal compressors
- Thrust‑bearing axial‑displacement monitoring for fluid‑film bearing rotating equipment
- Generator, large‑size fan and pump machinery protection systems
- Petrochemical refinery, thermal power plant and natural‑gas compression station critical rotating equipment protection
- Limited‑space mounting positions requiring short‑cable proximity probe assembly Performance Parameters:
- Measurement Non‑linearity: Less than ±1.5 % of full linear range
- Repeatability: Better than ±0.02 mm
- Target Material Requirement: Standard AISI‑4140 steel or equivalent conductive metallic surface
- Minimum Target Surface Diameter: 21 mm for 8 mm tip probe
- Output Signal: Negative DC voltage proportional to physical gap
- Cable Capacitance: 69.9 pF/m nominal Material Composition:
- Probe Tip Core: Polyphenylene sulfide (PPS) high‑temperature resistant insulating polymer
- Probe Housing Body: AISI 304 stainless‑steel machined alloy
- Internal Sensing Coil: High‑stability enamel‑wound copper coil
- Probe Cable Insulation: Fluoropolymer high‑temperature resistant insulating material
- Connector Shell: Gold‑plated nickel‑plated alloy
- Connector Protector Sleeve: High‑strength heat‑resistant plastic Structural Characteristics:
- Fully‑threaded M10 × 1 probe body, zero unthreaded segment
- Compact cylindrical structure, integrated sensing coil encapsulated inside probe tip
- Non‑armored flexible cable directly extruded from probe rear housing
- Rear‑end ClickLoc miniature coaxial quick‑lock connector with protective sleeve
- Standard machined metric thread allows direct screwing into machine housing mounting hole Working Principle: High‑frequency alternating current from Proximitor sensor flows through internal probe coil, generating alternating electromagnetic field around probe tip. When conductive metallic target approaches probe tip, eddy current is induced on target surface. The eddy‑current consumes magnetic‑field energy, changing equivalent impedance of probe coil. Proximitor circuit converts impedance variation into DC output voltage strictly proportional to physical gap between probe tip and target surface. Static displacement and dynamic vibration waveform can be captured through this voltage signal. Installation Requirements:
- Mount probe perpendicular to measured rotating shaft target surface, keep mounting angle deviation less than 1‑degree
- Screw probe into M10 × 1 tapped mounting hole on bearing housing; do not over‑torque during screwing process
- Adjust static working gap to 1.27 mm recommended setting before machine startup
- Connect probe ClickLoc connector finger‑tight until audible click sound appears, install matching connector protector
- Keep total system length including probe cable plus extension cable strictly match Proximitor nominal system length
- Probe tip must maintain full clearance from shaft surface, avoid mechanical collision during rotation
- Keep probe cable away from high‑voltage power cables, maintain minimum 150 mm separation distance
- Fix cable with cable clamps to avoid cable pulling stress transferred to probe body Usage Notes:
- Do not scratch, impact or deform probe tip polymer surface, any tip damage will destroy calibration performance
- Strictly forbid cutting or shortening factory‑integrated probe cable on‑site
- Only use factory‑matched 3300‑XL series extension cable and Proximitor sensor
- Inspect connector protector installation status periodically under heavy‑vibration environment
- Prevent oil, water and corrosive medium invading connector contact surface
- Perform gap‑voltage check during each unit overhaul cycle, verify transducer loop health status
