Description

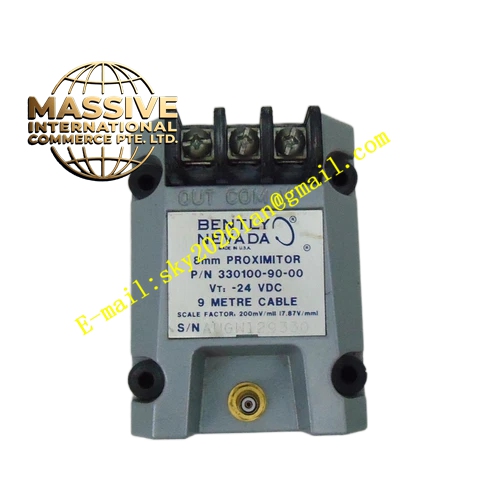

Bently 330104-00-10-10-02-00
Technical Specifications
- Product Series: 3300 XL 8mm Proximity Probe
- Part Number: 330104-00-10-10-02-00
- Probe Diameter: 8 mm
- Thread Type: M10×1 metric
- Unthreaded Length: 0.0 mm
- Overall Case Length: 100 mm
- Total Cable Length: 1.0 meter
- Connector Type: Miniature coaxial ClickLoc connector, standard cable
- Agency Approval: Not required
Functional Features
- Non-Contact Measurement: Provides precise measurement of both static position and dynamic vibration without physical contact.
- High Sensitivity: Delivers 7.87 V/mm (200 mV/mil) output for accurate detection of minute vibration changes.
- API 670 Compliance: Meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.
- System Interchangeability: Fully interchangeable with other 3300 XL 8mm proximity probes.
Application Scenarios
Used in fluid film bearing machines for radial vibration monitoring, axial displacement measurement, Keyphasor reference, and speed measurement. Common applications include steam turbines, gas turbines, centrifugal compressors, pumps, fans, and gearboxes.
Performance Parameters
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 2 mm (80 mils)
- Frequency Response: 0 to 10 kHz
- Accuracy: ±1% of full scale
- Operating Temperature: -40°C to +177°C
- Recommended Gap Setting: 1.27 mm (50 mils)
Material Composition
Stainless steel probe body with precision-wound internal coil, TipLoc patented molding technology, CableLoc patented cable retention design, and gold-plated ClickLoc connectors.
Structural Characteristics
Cylindrical 8mm diameter probe with M10×1 metric mounting thread. The probe features an integrated 1.0 meter armored cable terminated with a miniature coaxial ClickLoc connector. The 100mm case length provides extended reach for deep insertion installations.
Working Principle
The probe coil generates a high-frequency magnetic field, and eddy currents induced in the conductive target surface alter the coil impedance proportionally to the gap distance. The Proximitor detects this impedance change and converts it into a DC voltage output.
