Description

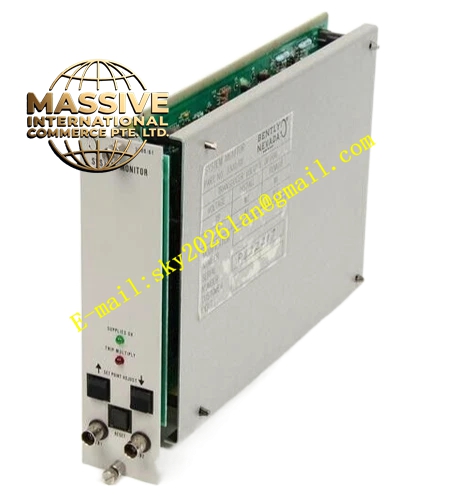

Bently 3500/15-05-00-00
Technical Specifications
- Module Type: Single Universal AC Power Supply
- Upper Slot Input: 85 to 264 VAC RMS
- Lower Slot: No power supply
- Output: Regulated DC for 3500 backplane
Functional Features
- Universal Input: Accepts global AC voltages without switching.
- Single Supply Operation: Suitable for standard applications or externally redundant systems.
- Wide Frequency Range: 47 to 63 Hz compatibility.
Application Scenarios
Standard deployments in facilities with varying AC voltage standards or where redundancy is provided externally.
Performance Parameters
- Operating Temperature Range: -30°C to +65°C (-22°F to +149°F)
- Input Range: 85-264 VAC, 47-63 Hz
- Protection: Over-voltage, over-current, and short-circuit protection
Material Composition
Industrial-grade universal power supply components with comprehensive filtering.
Structural Characteristics
Single half-height module in upper slot with front-panel universal AC input and status LED.
Working Principle
Converts universal AC input to regulated DC output for the 3500 rack.
Installation Requirements
Install in upper leftmost power supply slot. Connect AC input with properly rated conductors.
Usage Precautions
Verify AC input is within universal range. Ensure proper grounding. Never remove while energized.
