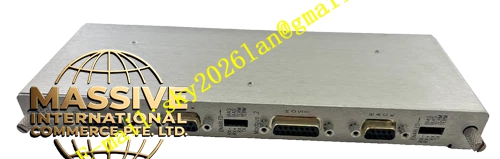

Bently 3500 25-01-01-CN
Technical Specifications
- Module Type: Keyphasor Module
- Configuration: 01-01 (Standard)
- Regulatory Approval: CN (China National Standards)
- Channels: Dual-channel design
- Slot Requirement: Any available monitor slot
Functional Features
- Domestic Compliance: Fully certified for use in Chinese industrial facilities, ensuring smooth project acceptance and regulatory audits.
- Versatile Sensing: Compatible with both proximity and magnetic sensors for flexible installation.
- Backplane Synchronization: Distributes a clean, accurate phase reference signal to all vibration monitors in the rack.
Application Scenarios
Widely used in domestic power plants, petrochemical facilities, and manufacturing plants for standard condition monitoring and protection of rotating machinery.
Performance Parameters
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -40°C to +85°C
- Humidity: 95% non-condensing
- Input Impedance: 20 kΩ standard
Material Composition
Industrial-grade electronic components with environmental protection coatings.
Structural Characteristics
Standard full-height form factor with front-panel status LEDs and backplane connector.
Working Principle
Receives sensor pulses, conditions the signal, calculates RPM, and outputs a synchronized Keyphasor pulse to the rack backplane.
Installation Requirements
Install in any available monitor slot. Ensure proper sensor gap and cabling.
Usage Notes
Verify the CN certification label matches project requirements. Configure the correct sensor type and trigger levels via the configuration software.
