Description

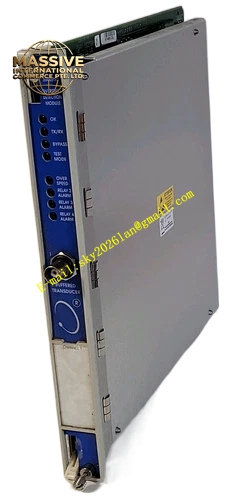

Bently 3500/32M-01-00
Technical Specifications
- Module Type: Enhanced 4-Channel Relay Module (M-Series)
- Configuration: 01-00 (Standard Enhanced)
- Channel Count: 4 independent relay outputs
- Slot Placement: Any available monitor slot (right of TDI)
Functional Features
- Enhanced Processing: Faster logic execution and improved internal diagnostics.
- Advanced Diagnostics: Provides more detailed internal health monitoring, coil fault detection, and contact feedback.
- Backward Compatibility: Fully supports existing 3500 M-series monitors and System 1 software.
Application Scenarios
Ideal for modernizing existing 3500 systems, new installations requiring advanced relay diagnostics, and facilities utilizing predictive maintenance analytics.
Performance Parameters
- Operating Temperature Range: -30°C to +65°C
- Storage Temperature Range: -40°C to +85°C
- Humidity: 95% non-condensing
Material Composition
Next-generation microprocessors and high-reliability relay components with enhanced thermal management.
Structural Characteristics
Standard full-height module with updated front-panel LED logic for enhanced status visibility and diagnostic feedback.
Working Principle
Utilizes upgraded firmware and hardware to efficiently execute alarm logic and provide real-time relay health feedback to the host system.
Installation Requirements
Install in any available monitor slot. Ensure the 3500 Rack Configuration Software version supports the 32M module.
Usage Notes
When replacing a legacy 3500/32 with a 32M, verify that the system firmware is updated to recognize the enhanced module.
