Description

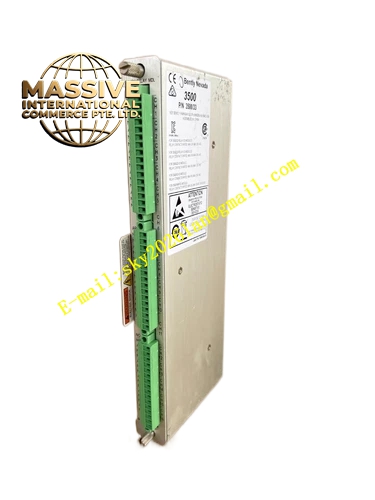

Bently 3500/50-01-01-01
Technical Specifications
- Module Type: 2-Channel Tachometer Module
- Configuration: 01-01-01 (Variant)
- Channel Count: 2 independent channels
- Slot Placement: Any available monitor slot
Functional Features
- Specialized Processing: Tailored signal conditioning for specific application requirements.
- Backward Compatibility: Designed to integrate seamlessly with older 3500 systems or specific plant configurations.
- Standard Tachometer Functions: Retains core speed and direction detection capabilities.
Application Scenarios
Used in system upgrades, legacy replacements, or specialized machinery where standard 3500/50 configurations do not meet specific operational needs.
Performance Parameters
- Operating Temperature Range: -30°C to +65°C
- Storage Temperature Range: -40°C to +85°C
- Humidity Tolerance: 95% non-condensing
Material Composition
OEM-specification industrial electronics.
Structural Characteristics
Full-height module with standard LED indicators.
Working Principle
Processes sensor inputs according to the variant-specific firmware to generate speed and direction signals.
Installation Requirements
Install in an available monitor slot. Verify configuration matches the original system design.
Usage Notes
Always verify the complete ordering code, including the “-01-01-01” variant, to ensure compatibility with the existing system.
