Description

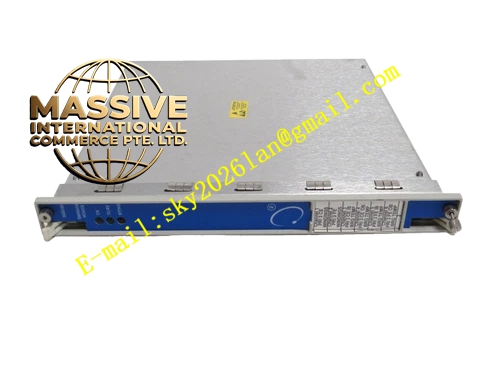

Bently 3500 64M 140734-05
Technical Specifications
- Model: 3500/64M (140734-05)
- Channels: 8 channels (4-channel configuration optional)
- Sampling Frequency: Up to 12.8 kHz
- Resolution: 16-bit ADC
Functional Features
- High-Speed Data Capture: Supports high-frequency vibration signal acquisition for detailed bearing fault and gear mesh analysis.
- Advanced Diagnostics: Performs real-time spectrum analysis, trend recording, and transient event capture.
- Multi-Sensor Compatibility: Accepts eddy current probes, accelerometers, and velocity sensors, including Keyphasor inputs.
Application Scenarios
Deployed in power generation, petrochemical, and metallurgical industries for continuous condition monitoring and advanced fault diagnosis of steam turbines, compressors, and generators.
Performance Parameters
- Noise Level: ≤ 0.025 mm/s (RMS)
- Dynamic Range: ≥ 90 dB
- Operating Temperature: -40°C to +70°C
Material Composition
Constructed with high-strength, flame-retardant industrial plastics and conformal-coated internal circuit boards for superior EMI shielding.
Structural Characteristics
Standard 3500 module form factor with front-panel status LEDs and a precision backplane connector for seamless rack integration.
Working Principle
Receives analog signals from sensors, performs high-speed A/D conversion, and processes the digital data using embedded DSP algorithms to extract frequency domain and time-domain characteristics.
Installation Requirements
Insert into an available slot in the 3500 rack. Ensure sensor cables are properly shielded and routed away from high-voltage interference sources.
Precautions for Use
Configure the sampling frequency and trigger levels in the 3500 Rack Configuration Software to optimize data storage and processing. Verify sensor compatibility before operation.
