Description

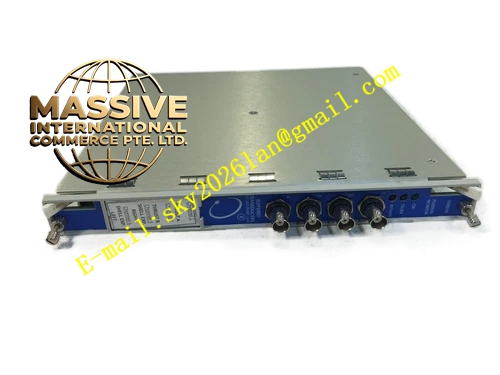

Bently 3500/92-04/01/00
Technical Specifications
- Module Type: Communications Gateway (Ethernet/RS485 Modbus)
- Configuration Code: 04-01-00 (Standard Configuration)
- Communication Interfaces: Ethernet TCP/IP (10BASE-T) and Serial RS485
- Supported Protocols: Modbus/TCP, Modicon Modbus (RTU), and proprietary Bently Nevada protocol
Functional Features
- Industry Standard: The baseline communications gateway for the 3500 platform, widely supported and documented.
- Plug-and-Play: Fully compatible with 3500 Rack Configuration Software without requiring special hardware jumpers.
- Reliable Data Transfer: Proven performance in thousands of installations worldwide for continuous data integration.
Application Scenarios
Standard deployment for any 3500 system requiring integration with DCS, PLC, or SCADA systems via both Ethernet and RS485 networks.
Performance Parameters
- Operating Temperature Range: -30°C to +65°C
- Storage Temperature Range: -40°C to +85°C
- Humidity Tolerance: 95% non-condensing
- Typical Power Consumption: 5.6 Watts
Material Composition
Industrial-grade electronic components with environmental protection coatings.
Structural Characteristics
Full-height module with front-panel LEDs indicating communication status (TX/RX), module health (OK), and physical RJ45/RS485 interfaces.
Working Principle
Continuously polls the rack and transmits data using standard Modbus TCP/IP and proprietary protocols.
Installation Requirements
Install in any available monitor slot. Connect to the network using standard RJ45 cabling and RS485 shielded cables.
Usage Notes
Configure the correct IP addresses and Modbus register maps via the 3500 Rack Configuration Software. Ensure proper grounding of the RS485 shield to prevent signal interference.
