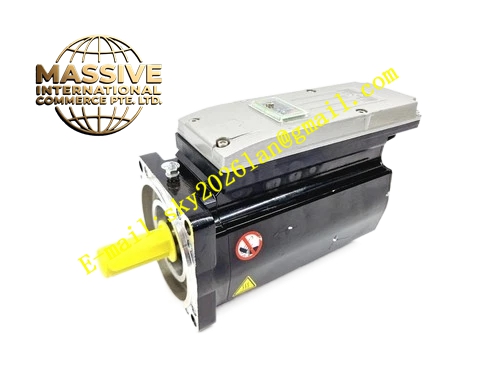

ELAU ISH100‑30025‑0‑0‑00‑0‑00‑00‑00
Technical Specifications Flange Size: 100 mm square flange Rated Speed: 3000 rpm Rated Torque: 25 Nm Rated Voltage: 400 V AC class Encoder Type: Hiperface multi‑turn absolute encoder Built‑in Brake: None Shaft Configuration: Standard flat‑key output shaft Connector Form: 90‑degree rotatable right‑angle connectors Protection Class: IP65 Operating Ambient Temperature: ‑20℃ to +40℃ Cooling Method: Natural convection cooling Mounting Type: Flange‑face fastening installation
Functional Features Multi‑turn Hiperface absolute encoder acquires complete absolute rotor position immediately after power‑up, machine startup procedure does not require homing movement. 90‑degree rotatable right‑angle connectors permit adjustment of cable‑exit direction to adapt compact internal‑machine wiring layout. Embedded electronic motor nameplate enables servo drive to automatically identify all motor parameters upon power‑on. F‑grade stator‑winding insulation ensures stable thermal performance under continuous heavy‑load operation. IP65‑rated housing resists oil mist and dust intrusion. Brake‑free mechanical design shortens overall axial body dimension.
Application Scenarios Heavy‑duty horizontal main‑drive axes for packaging equipment; material‑conveying driving shafts of converting machinery; high‑torque multi‑axis‑synchronized automated production lines.
Performance Parameters Steady‑state speed control accuracy reaches ±0.01 %. Short‑term overload capability achieves 250 % of rated torque. Multi‑turn absolute position data is preserved without external power supply. Motor output shaft rotates freely without mechanical locking when power supply is removed.
Material Composition Die‑cast aluminum‑alloy motor housing, silicon‑steel‑sheet laminated stator core, high‑energy neodymium‑iron‑boron permanent‑magnet rotor magnets, Hiperface multi‑turn absolute encoder assembly, rubber sealing gaskets, alloy‑steel flat‑key output shaft, rotatable metal circular connectors.
Structural Characteristics 100‑mm square mounting flange, output‑shaft machined with standard flat‑key slot. Motor rear‑end mounts 90‑degree rotatable dual circular connectors, separating motor‑power interface and encoder‑signal interface. No built‑in brake assembly, overall axial length is compact. Full part number ISH100‑30025‑0‑0‑00‑0‑00‑00‑00 is marked on metal housing nameplate.
Working Principle Servo drive outputs three‑phase variable‑frequency AC power to stator windings to generate rotating magnetic field and drive permanent‑magnet rotor rotation. Rear‑end multi‑turn absolute encoder continuously samples rotor angular‑position and rotational‑speed signals, feeds feedback signals back to servo drive for position‑and‑speed closed‑loop computation. No internal brake mechanism exists; rotor receives no mechanical constraint when power supply cuts off.
Installation Requirements Tighten flange‑mounting screws with torque values strictly following specifications printed on motor nameplate. Realize high‑precision coaxial alignment between motor output shaft and load transmission shaft by means of coupling assembly. Deploy shielded motor‑power cables and shielded encoder‑feedback cables; fully lock circular connectors after mating. Route encoder‑signal cables separately away from high‑voltage power cables.
Usage Notes External mechanical brake mechanism must be installed separately if this motor is applied to vertical‑load mechanical axes. Prohibit striking or hammering motor output‑shaft surface. Protect circular connectors against oil contamination and moisture penetration. Wear anti‑static wrist straps during maintenance service to prevent electrostatic damage to encoder components.
