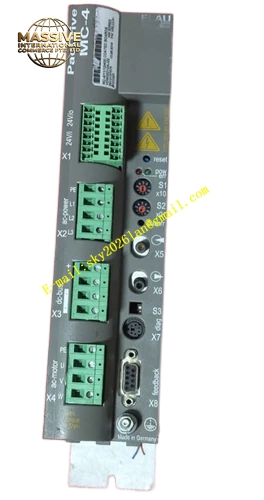

ELAU MC-4VDMO1D1AB00
Technical Specifications:
- Brand: ELAU (Schneider Electric)
- Model: MC-4VDMO1D1AB00
- Series: MC-4
- Rated Voltage: AC 380V to 480V (3-phase)
- Control Voltage: DC 24V
Functional Features:
- Integrated Design: Combines power supply, output stage, and software regulator in one unit.
- Vector Control: Advanced 3-loop control (current, speed, position) for high precision.
- Overload Capacity: High dynamic overload capability (up to 250% for short durations).
- Auto-Tuning: Automatic motor identification and parameterization.
Application Scenarios:
- Robotics (joint drives).
- CNC machining centers.
- Automated assembly lines.
Performance Parameters:
- Rated Current: Typically 10A or higher depending on specific configuration.
- Communication: SERCOS III fiber optic interface.
- Cooling: Internal fan or convection cooling.
Material Composition:
- High-strength housing with thermal management features.
- Advanced IGBT power modules.
Structural Features:
- Compact “sleeve” design for direct motor mounting.
- Fiber optic ports for noise-immune communication.
- Power and feedback connectors.
Working Principle:
The drive receives digital commands via the fiber optic bus. It converts the DC bus voltage into a three-phase AC output using Pulse Width Modulation (PWM). The internal processor regulates the current to match the torque demand while monitoring position feedback.
Installation Requirements:
- Ensure proper heat dissipation if mounted directly on the motor.
- Connect the fiber optic cables carefully to avoid damage.
- Verify the DC bus connection polarity.
Usage Notes:
- The drive automatically identifies the connected motor (Gen3 or higher).
- Monitor the temperature during heavy load operations.
- Use shielded cables for power connections to meet EMC standards.
