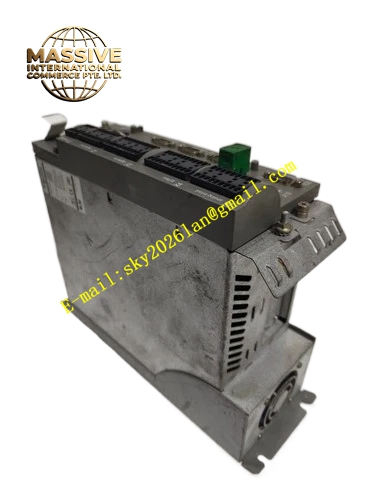

ELAU C400-10-1-1-1-00
Technical Specifications:
- Brand: ELAU (Schneider Electric)
- Model: C400-10-1-1-1-00
- Product Type: Motion Controller
- Processor: High-performance 32-bit processor.
- Memory: 256MB RAM / 32MB Flash (Typical for C400 series).
- Communication: Sercos III, EtherCAT, CANopen, Profibus DP.
Functional Features:
- Multi-Axis Control: Capable of synchronizing up to 16 axes (depending on license/hardware).
- Interpolation: 2D linear and circular interpolation.
- Electronic Cams: Extensive library of cam profiles.
- Web Server: Integrated web server for remote monitoring.
Application Scenarios:
- Packaging (Flow wrappers, Cartoning).
- Printing (Flexo, Digital).
- Robotics (Delta, SCARA).
Performance Parameters:
- Positioning Accuracy: High precision (micrometer range with appropriate feedback).
- Bus Cycle: Minimum 250µs.
Material Composition:
- Ruggedized housing.
- Gold-plated connectors for reliability.
Structural Features:
- DIN rail mounting.
- Plug-in connectors for I/O and Power.
Working Principle:
It utilizes a multi-tasking operating system to handle motion planning, logic execution, and communication simultaneously. It calculates the required torque for each axis and sends this data to the drives via the fieldbus.
Installation Requirements:
- Ensure the control cabinet has adequate ventilation.
- Use ferrite cores on cables if necessary to reduce EMI.
Usage Notes:
- This model often requires a specific firmware version for optimal performance.
- Check the LED status indicators for boot-up errors.
- Ensure the Compact Flash card (if used) is securely inserted.
