Description

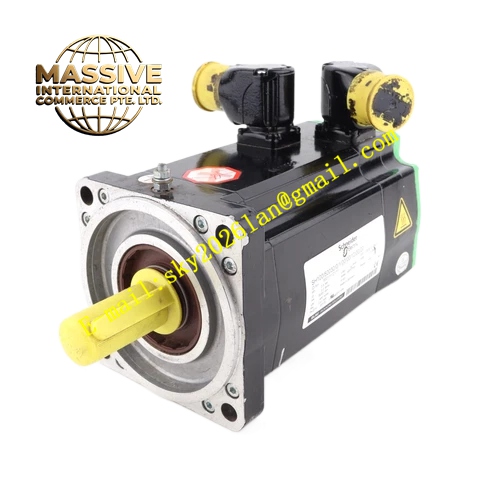

ELAU SH070-60020-0-1-00-00-00-01-00
Technical Specifications:
- Brand: ELAU (Schneider Electric)
- Model: SH070-60020-0-1-00-00-00-01-00
- Series: SH070
- Flange Size: 70 mm
- Protection Class: IP65
Functional Features:
- High Dynamic Response: Optimized for fast acceleration and deceleration.
- High Resolution Encoder: Equipped with SinCos encoder for precise feedback.
- Robust Design: Suitable for harsh industrial environments.
- Single Cable Technology: Simplifies installation.
Application Scenarios:
- Packaging machinery.
- Robotics.
- Printing and converting.
Performance Parameters:
- Rated Torque: High torque density.
- Control Modes: Position, Velocity, and Torque control.
- Efficiency: High energy efficiency.
Material Composition:
- Industrial-grade metal housing.
- NdFeB permanent magnets.
Structural Features:
- Compact flange mounting.
- IP65 rated connectors.
Working Principle:
The motor utilizes a permanent magnet rotor and a stator with three-phase windings. The drive supplies current to the stator, creating a rotating magnetic field that interacts with the rotor magnets to produce torque. Feedback from the encoder ensures precise closed-loop control.
Installation Requirements:
- Mount on a standard industrial flange.
- Ensure adequate ventilation.
- Connect shielding cables properly.
Usage Notes:
- Verify the voltage rating.
- Ensure the drive is compatible.
- Do not exceed the maximum permissible loads.
