Description

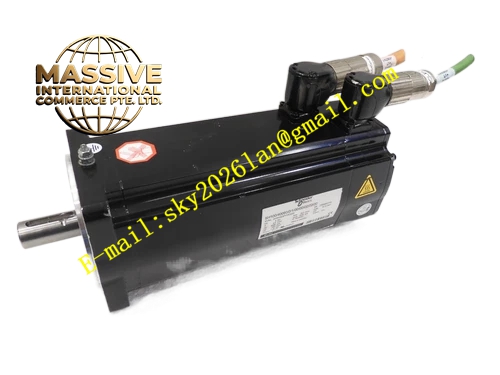

ELAU SH70-60020-0-0-00-00-00-00-00
Technical Specifications:
- Brand: ELAU (Schneider Electric)
- Model: SH70-60020-0-0-00-00-00-00-00
- Series: SH-070
- Flange Size: 70 mm
- Motor Type: AC synchronous servo, permanently excited
- Rated Speed: 6000 RPM
- Stall Torque: 2.2 Nm
- Peak Torque: 7.6 Nm
- Protection Class: IP65 (IP67 with shaft seal option)
- Insulation Class: F (155°C per DIN VDE 0530)
- Origin: Germany
Functional Features:
- High Dynamic Response: Low rotor inertia design enables rapid acceleration and deceleration
- High Torque Density: Delivers 2.2 Nm stall torque and 7.6 Nm peak torque in a compact 70mm frame
- High-Resolution Encoder: Supports SinCos SKS36 or SKM36 measurement systems with Hiperface interface
- Thermal Monitoring: Three-wire PTC thermistor installed in the stator winding with switching temperature at 130°C
- Self-Cooling Design: No external cooling required for ambient temperatures up to 40°C
- Multiple Mounting Options: Supports IMB5, IMV1, and IMV3 mounting configurations per DIN 42950
Application Scenarios:
- High-speed precision positioning systems
- Industrial robot joint drives
- CNC machine tool feed axes
- High-speed packaging machinery
- Semiconductor manufacturing equipment
Performance Parameters:
- Stall Torque: 2.2 Nm
- Peak Torque: 7.6 Nm
- Rated Speed: 6000 RPM
- Maximum Speed: 8000 RPM (SH-070 series rated)
- Overload Capacity: Up to 4× rated torque
- Balance Grade: G2.5 per DIN ISO 1940
Material Composition:
- NdFeB permanent magnet rotor
- Dual-component high-strength epoxy resin coating (RAL9005 color)
- Class F insulation system
- Precision-machined cylindrical shaft per DIN 748
Structural Features:
- 70mm flange mounting interface
- IP67-rated rotatable cylindrical connectors
- Self-cooling housing design
- Optional keyway shaft per DIN 6885 T1
- Optional stainless steel shaft for corrosive environments
- Optional electromagnetic holding brake
Working Principle:
The motor operates as a permanently excited AC synchronous servo. The drive supplies precisely controlled three-phase current to the stator, generating a rotating magnetic field. The NdFeB permanent magnet rotor follows this field with precise angular control. The integrated SinCos encoder provides high-resolution position feedback for closed-loop control with micrometer-level accuracy.
Installation Requirements:
- Mount according to the specified configuration (IMB5, IMV1, or IMV3)
- Use IP67-rated connectors and ensure proper cable routing
- Ensure adequate cooling airflow for ambient temperatures above 40°C
- For IMV3 mounting, install shaft seal to achieve IP67 protection
- Connect the PTC thermal monitoring circuit to the drive
Usage Notes:
- The motor is certified for food contact (USDA), NFPA Class A, and NSF Standard 61
- Do not exceed the maximum ambient temperature of 40°C without additional cooling
- Verify the encoder type matches the drive configuration
- The standard shaft has no keyway — order keyway option separately if required
- Handle the encoder and connector interfaces with care to avoid damage
