Description

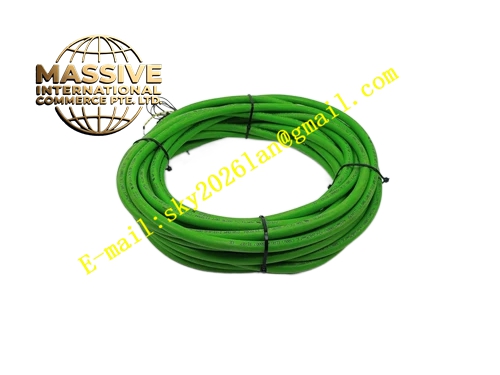

ELAU VW3E1111R100
Technical Specifications: Cable total length 10 m, conductor cross‑section 1.5 mm², cable outer diameter 14.5 mm, M23 male‑female circular metal connectors at two terminals, copper braided overall shielding layer, rated operating voltage 1000 V AC, rated continuous current 16 A, UL certified, bending radius static condition 8× cable outer diameter, dynamic flexing bending radius 12× cable outer diameter, operating ambient temperature ‑20 °C to +80 °C.
Functional Features: Full copper braided shielding structure suppresses electromagnetic interference between power circuit and signal circuit. Pre‑crimped factory‑assembled connectors eliminate field crimping error risk. Outer jacket material resists industrial oil, grease and moderate chemical solvent erosion. Matches pin‑out definition of ELAU SM and SH‑series servo motors and MC‑4 drive power interface. Suitable for both fixed installation and limited‑motion cable‑chain application scenarios.
Application Scenarios: Connection between SM / SH servo motor power terminal and PacDrive MC‑4 servo drive inside industrial control cabinet, packaging machine multi‑axis wiring, printing equipment servo system wiring, textile automation servo power connection.
Performance Parameters: UL industrial cable certification, connector protection rating IP67 after full locking, cyclic flexing service life meets industrial cable‑chain application standard.
Material Composition: Multi‑strand tinned copper inner conductors, cross‑linked polyethylene insulation material, full‑coverage tinned copper braid shielding layer, oil‑resistant PUR outer jacket, die‑cast zinc‑alloy M23 metal connector housing, PBT internal connector insulating inserts.
Structural Features: Both cable ends assemble M23 circular metal shell connectors. Internal conductor terminals are factory pre‑crimped. Overall braided shielding layer continuously covers whole cable length and connects to connector metal shell for 360‑degree EMC shielding. Strain‑relief structure integrated at cable‑connector transition section resists pulling force.
Working Principle: Transmits three‑phase AC power and PTC thermal‑sensor signal from servo drive to servo motor. Continuous 360‑degree shielding layer diverts high‑frequency electromagnetic noise to protective‑earth ground, reduces EMI radiation interference to nearby low‑voltage signal cables.
Installation Requirements: Maintain static bending radius no less than 8 times cable outer diameter. For cable‑chain moving installation, guarantee dynamic bending radius above 12 times cable outer diameter. Do not stretch cable under tensile force during laying. Keep power cable physically separated from encoder feedback signal cable with minimum 20 cm distance. Lock M23 connectors completely until click sound occurs. Connect shielding ground terminal to cabinet protective‑earth bar.
Usage Notes: Do not cut or modify factory‑preassembled connector section. Avoid sharp‑edge mechanical squeezing and cable surface scratch. Do not use outside published ‑20 °C ~ +80 °C temperature range. Prevent strong corrosive liquid direct contact with cable outer jacket. Check connector locking state periodically during long‑term equipment operation.
