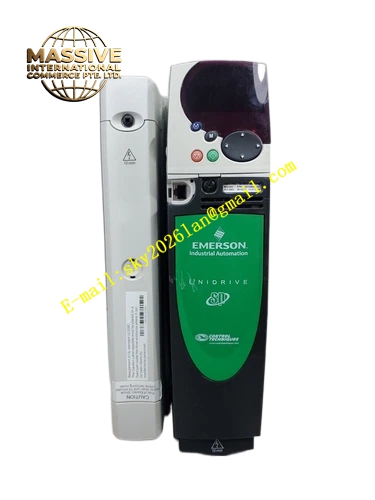

Emerson SP8411

Emerson SP8411

Product Introduction:
The Emerson SP8411 is a high-performance engineering variable frequency drive from the Unidrive SP series. It supports a wide power range from 0.37 kW to 1.9 MW across multiple voltage classes including 200V, 400V, 575V, and 690V. The drive offers three installation modes—surface mount, free-standing cabinet, and modular—to meet diverse application requirements. Its intelligent and dynamic response performance satisfies the most demanding reliability needs, while its compact structure makes it an ideal choice for energy-saving retrofit installations.

Request Quote
Category:

Description

Emerson SP8411

Technical Specifications:

  • Brand: Emerson (Control Techniques)
  • Model Number: SP8411
  • Product Series: Unidrive SP
  • Power Range: 0.37 kW to 1.9 MW
  • Voltage Classes: 200V / 400V / 575V / 690V
  • Installation Modes: Surface mount, free-standing cabinet, modular
  • Product Type: High-performance engineering drive

Functional Features:

  • Wide Power Range: Covers applications from fractional kW to nearly 2 MW
  • Multiple Voltage Support: Compatible with 200V, 400V, 575V, and 690V supply systems
  • Three Installation Modes: Surface mount, free-standing cabinet, and modular for maximum flexibility
  • Intelligent Dynamic Response: High-performance control algorithms for demanding applications
  • Extensive Option Modules: Supports communication modules (PROFIBUS-DP, DeviceNet, CANopen, Ethernet, SERCOS, PROFINET), feedback modules (Universal Encoder Plus, Resolver, SLM), and I/O modules (SM-I/O Plus, SM-I/O Lite, SM-I/O Timer, SM-I/O PELV)
  • Compact Structure: Space-saving design for retrofit applications

Application Scenarios:

  • High-performance industrial motor control across multiple voltage platforms
  • Complex manufacturing automation with fieldbus communication requirements
  • Crane and hoist applications requiring precise speed and torque control
  • Extruder and mixer drives in plastics and chemical processing
  • Marine and offshore applications with 690V supply systems

Material Composition:

  • Industrial-grade power electronic components
  • Robust enclosure suitable for harsh industrial environments
  • Multi-layer PCB with advanced power and control circuitry

Structural Features:

  • Modular architecture allowing expansion through option slots
  • Front-panel keypad for local parameter configuration and monitoring
  • Integrated heatsink with forced or natural convection cooling depending on frame size
  • Rear power and control terminal connections

Working Principle:
The SP8411 employs advanced vector control or V/F control algorithms to precisely regulate motor speed and torque. The drive converts AC input to DC via a rectifier, then uses an inverter stage with pulse width modulation to generate precisely controlled AC output. The intelligent control algorithms continuously monitor motor parameters and adjust output to maintain optimal performance.

Installation Requirements:

  • Select the appropriate installation mode based on the application environment
  • Ensure adequate ventilation and cooling for the selected power rating
  • Connect power supply matching the drive’s voltage class (200V/400V/575V/690V)
  • Install option modules in available slots for communication and I/O expansion
  • Ensure proper grounding and cable shielding

Usage Precautions:

  • Match the drive voltage class to the facility power supply
  • Configure communication parameters to match the fieldbus network
  • Set motor parameters accurately for optimal vector control performance
  • Use appropriate feedback devices when encoder-based control is required
  • Follow thermal derating guidelines for high-ambient-temperature installations
