Description

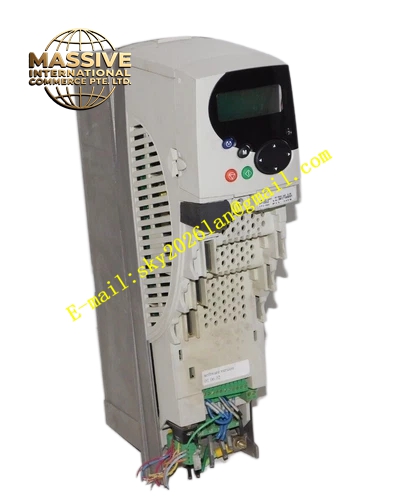

Emerson SP8414
Technical Specifications:
- Brand: Emerson (Control Techniques)
- Model Number: SP8414
- Product Series: Unidrive SP
- Rated Voltage: Three-phase AC 380–480V
- Output Voltage Control: PAM (Pulse Amplitude Modulation)
- DC Power Supply Type: Voltage source
- Built-in Filter: 1A + 1B filter
- Rated Current: 19A
- Power Phase: Three-phase
- Control Method: V/F open-loop
- Applicable Motor Power: 15 kW
- Supply Voltage Class: Medium voltage
Functional Features:
- Three Installation Modes: Surface mount, free-standing cabinet, and modular configurations to meet diverse application requirements
- Intelligent Dynamic Response: Delivers reliable performance in demanding industrial environments
- Compact Structure: Space-saving design suitable for retrofit and energy-saving installations
- Built-in EMI Filter: Integrated 1A + 1B filter reduces electromagnetic interference
- Flexible System Integration: Designed for seamless integration into larger automation systems or standalone use
Application Scenarios:
- Industrial motor speed control and energy-saving applications
- System integration in manufacturing automation
- Pump and fan control in water treatment and HVAC systems
- Conveyor and material handling systems
- Retrofit projects requiring compact, high-performance drives
Material Composition:
- Industrial-grade power electronic components
- Robust塑壳 (plastic housing) enclosure
- Multi-layer PCB with integrated power and control circuits
Structural Features:
- Compact modular form factor compatible with Ovation-style rack mounting
- Front-panel interface for parameter configuration and status monitoring
- Integrated heatsink for thermal management
- Rear terminal block for power and motor connections
Working Principle:
The SP8414 converts fixed-frequency AC input power into DC through a rectifier stage, then inverts the DC back into variable-frequency, variable-voltage AC output using pulse amplitude modulation. The V/F open-loop control method maintains a constant voltage-to-frequency ratio to control motor speed and torque proportionally.
Installation Requirements:
- Mount in a well-ventilated enclosure with adequate clearance for heat dissipation
- Connect three-phase power supply to the input terminals according to the wiring diagram
- Connect motor cables to the output terminals with proper cable sizing
- Ensure proper grounding of the drive chassis
- Install the built-in filter connections as specified in the installation manual
Usage Precautions:
- Verify that the motor rated power matches the drive’s applicable motor power rating of 15 kW
- Ensure the power supply voltage falls within the 380–480V range
- Use shielded cables for motor connections to minimize electromagnetic interference
- Allow adequate cooling airflow around the drive during operation
- Perform parameter configuration before commissioning to match the specific motor and application requirements
