Description

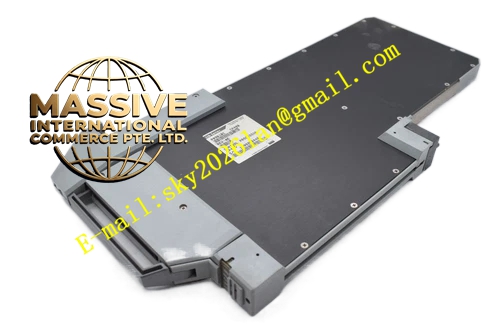

Foxboro CP40B P0961BC
Technical Specifications
- Hardware Code: P0961BC
- Processor: 32-bit Industrial RISC Processor
- Memory: 8 MB Program Memory, 4 MB Data Memory
- Communication: Redundant 2 Mbps Module Fieldbus and 100Mbps Ethernet
- I/O Capacity: Supports up to 32 Series 200 FBMs (expandable to 128)
Key Features
- High-Speed Execution: Processes Boolean instructions in 0.1 µs and floating-point operations in 0.5 µs, ensuring deterministic control performance.
- Hot-Standby Redundancy: Supports seamless, bumpless transfer between primary and backup processors in the event of a hardware failure.
- Data Integrity Verification: Utilizes bit-by-bit matching technology between redundant processors to guarantee data consistency and prevent erroneous command propagation.
- Extensive Diagnostics: Provides comprehensive self-diagnostics and network health monitoring.
Application Scenarios
Deployed as the core controller in critical process automation environments, including oil refineries, petrochemical plants, and power generation facilities, where continuous, reliable control is paramount.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Power Supply: 24 VDC, 10W typical, supports redundant power
- Protection Rating: IP20
Material Composition
Enclosed in a die-cast aluminum housing designed to withstand G3-class harsh environments, providing excellent shielding against high dust levels and strong electromagnetic interference.
Structural Characteristics
Compact dimensions of 140mm × 165mm × 45mm with a weight of 0.6 kg. Features comprehensive front-panel status LEDs and robust rear communication interfaces.
Operating Principle
The 32-bit RISC processor continuously polls connected I/O modules, executes high-speed control algorithms, and transmits processed data over the redundant 100Mbps Ethernet network. In redundant configurations, it uses bit-by-bit matching to ensure seamless failover.
Installation Requirements
Must be installed on a compatible Foxboro 200 Series baseplate. Ensure adequate cabinet ventilation and maintain a low-impedance protective earth ground for enhanced noise immunity.
Usage Precautions
When configuring hot-standby redundancy, ensure primary and backup modules have identical firmware versions. Always follow standard ESD handling procedures during installation or replacement.
