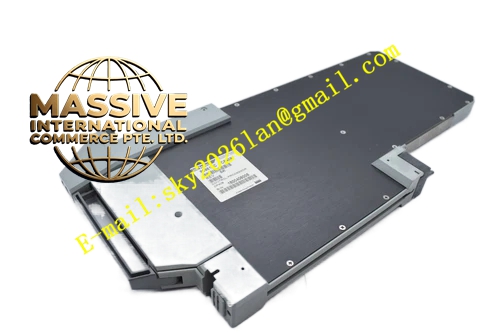

Foxboro CP4OB
Technical Specifications
- Processor: Enhanced 32-bit Industrial RISC Processor.
- Memory: Expanded Program and Data Memory allocation for faster block processing.
- Communication: Redundant Module Fieldbus and Integrated Fiber Optic Ethernet.
- Compatibility: Enhanced native support for the latest generation of FBM modules.
Key Features
- Enhanced Processing Performance: Improved instruction execution and data handling capabilities for complex, high-density control strategies.
- Advanced Fault Tolerance: Refined self-diagnostic algorithms and faster failover mechanisms in redundant configurations.
- Integrated Network Connectivity: Seamless integration with high-speed Foxboro Evo control networks via fiber optic interfaces.
- Scalable Architecture: Supports extensive I/O expansion for large-scale industrial applications.
Application Scenarios
Ideal for modernizing legacy DCS systems, large-scale refinery process optimization, and applications requiring high-speed, high-precision local control with extensive I/O density.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Protection Rating: IP20
- Power Supply: 24 VDC redundant backplane supply.
Material Composition
Constructed with a rugged die-cast aluminum housing and internally conformal-coated PCBs to ensure long-term reliability in severe industrial conditions.
Structural Characteristics
Maintains the standard 140mm × 165mm × 45mm footprint (0.6 kg) for easy drop-in replacement of older CP modules. Features upgraded front-panel indicators and robust communication interfaces.
Operating Principle
Functions as the primary local controller, executing control algorithms and managing I/O data exchange. The enhanced firmware optimizes task scheduling and communication overhead, ensuring deterministic control performance even under heavy system loads.
Installation Requirements
Mount on a Foxboro 200 Series baseplate. Ensure proper grounding and ventilation. When replacing an older CP, verify system software compatibility and update configuration as necessary.
Usage Precautions
Confirm that the CP4OB hardware code matches the system’s compatibility matrix. Ensure firmware versions are synchronized across redundant pairs. Strictly adhere to ESD handling guidelines during installation.
