Description

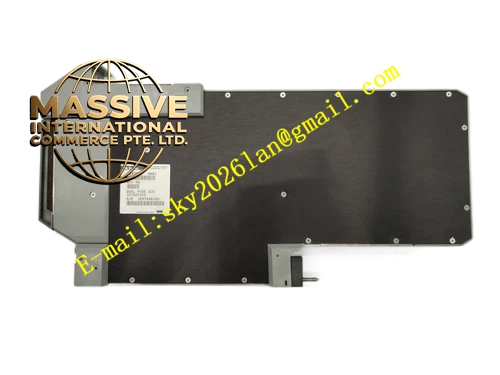

Foxboro DNBT P0971WV
Technical Specifications
- Hardware Code: P0971WV
- Product Type: DeviceNet Bridge Terminal (DNBT)
- Integration: Interfaces directly with DNBI module.
- Connection Type: DeviceNet Thick/Thin cable terminals.
Key Features
- Robust Signal Conditioning: Provides proper termination, biasing, and signal isolation for the DeviceNet network.
- Secure Field Connections: Engineered to provide vibration-resistant connections for field cables.
- High Reliability: Built with high-quality conductive materials to maintain signal integrity over time.
- Diagnostic Feedback: Provides visual and system-level feedback on network health and termination status.
Application Scenarios
Deployed in all DeviceNet-integrated Foxboro I/A Series control cabinets as an essential building block for terminating and conditioning DeviceNet field wiring.
Performance Parameters
- Operating Temperature: 0°C to 60°C
- Protection Rating: IP20
- Power Supply: 24 VDC backplane supply.
Material Composition
Housed in a flame-retardant, high-strength industrial enclosure with high-conductivity metal terminals to resist corrosion and harsh atmospheric conditions.
Structural Characteristics
Standard 200 Series FBM single-width form factor. Features clear terminal markings and precision rear connectors for seamless integration with the DNBI module.
Operating Principle
Provides a conditioned electrical pathway, routing external DeviceNet signals to the DNBI module while maintaining proper network termination and electrical isolation.
Installation Requirements
Install securely onto the designated DNBI module. Ensure all terminal screws are properly torqued to prevent loose connections due to vibration.
Usage Precautions
Never over-torque terminal screws. Verify that the DeviceNet cable type (thick or thin) matches the terminal specifications. Always observe standard ESD precautions during handling.
